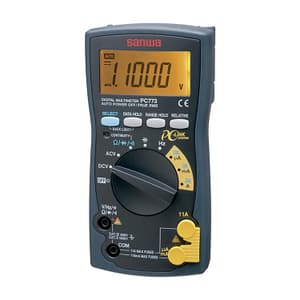

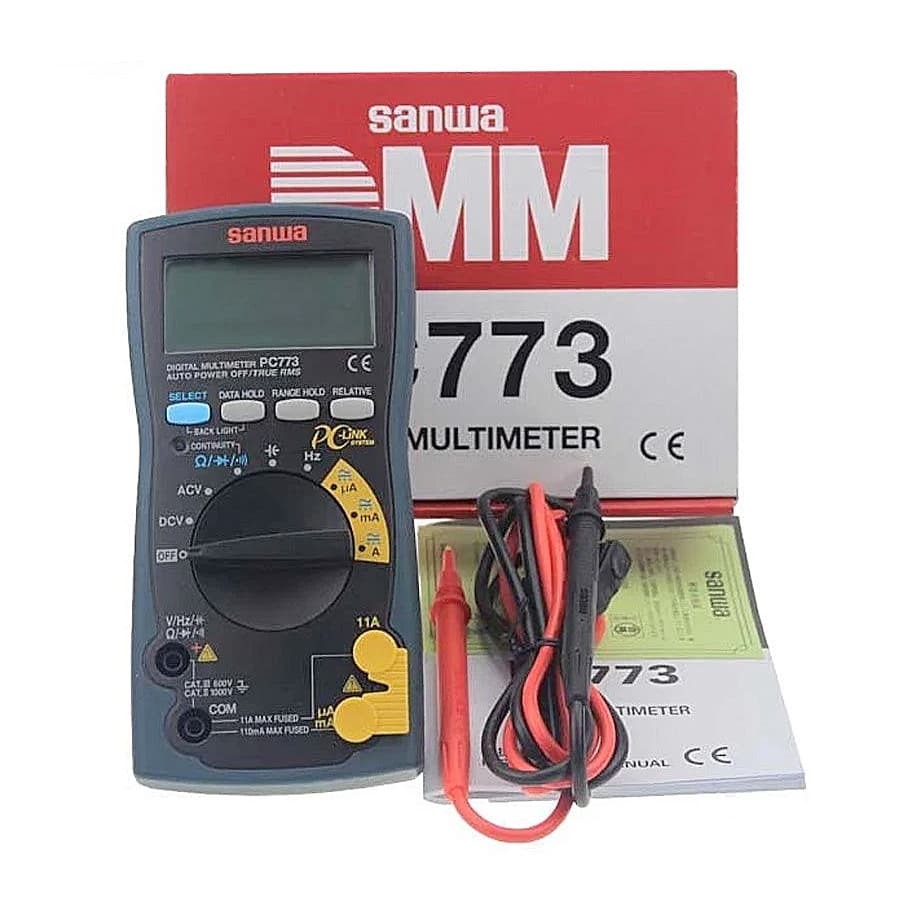

Sanwa 11000 Count TRMS Digital Multimeter with PC Link, PC773
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 460 g
- Display: 11000 Count
- Sampling Rate: 4 times/sec.
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹16,992 (Incl. of all taxes)
₹14,400 + ₹2,592 GST (18%)
MRP was MRP ₹16,000
Save 10%
7 Business Days
1
–
Download Sanwa CatalogueNot available
Highlights
The PC773 measures voltage, current, resistance, capacitance and frequency. This True RMS multitester is meant for low voltage measurements; however, it does feature a EN61010-1 CAT. III (600V) rating for use with 3 phase systems as well as EN61010-1 CAT.II (1000V) for home appliances and similar loads. The meter has thermo-plastic elastomer protection against drop shocks and also includes a built-in kick stand to place it upright. The device has Auto Power Save feature which turns on after 30 minutes of inactivity and is cancellable.
The device also supports continuity tests and features a buzzer and LED for notification. Users can also measure temperature using the T-300 probe and PC Link7 software both of which are optional accessories. The meters data-logging capability requires the optional optical link cable (KB-USB773), and PC Link software (PC Link7), sold separately. Once connected, the Sanwa PC Link7 software automatically starts logging measurements in real-time into a CSV file. This software can also create a trend graph making it easier for the users to analyze the data.
Features:
- AC True RMS / 11000 Count Display
- 0.28% Accuracy
- High speed bar graph
- Capacitance measurement
- Frequency measurement
- Data hold / Range hold
- Relative value
- Auto power save (30min after the last operation) (cancelable)
- Thermo-plastic elastomer, high resistance against drop shock

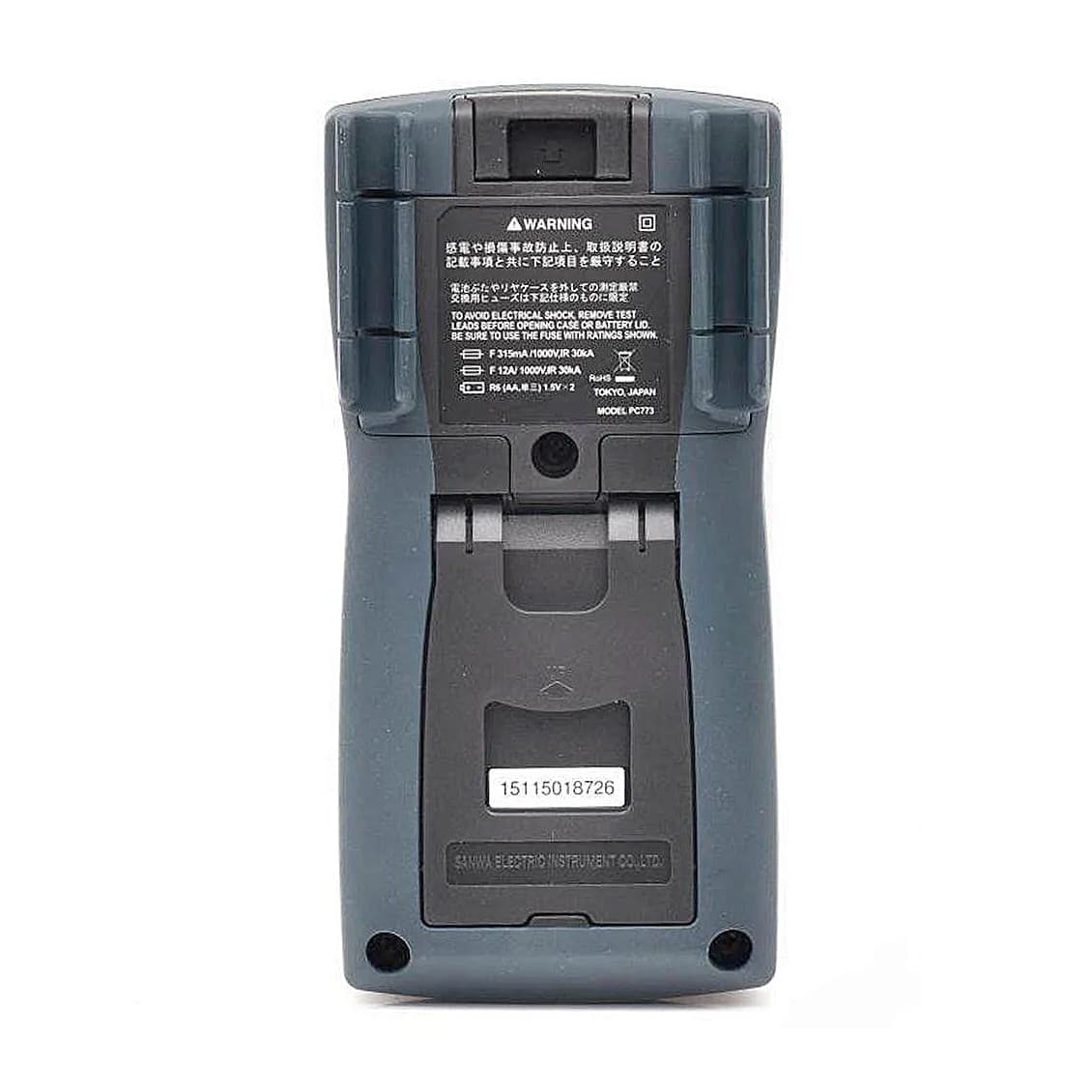

- Tilt stand
- PC Link system (requires optional optical link USB cable (KB-USB773) and software (PC Link7)
- Temperature measurement (requires T-300PC - optional accessory)
Technical Data:
| Range | Accuracy | Resolution | Input Impedance | |
| DCV | 110m / 1.1 / 11 / 110 / 1000V | ±(0.28%+2) | 0.01mV | 10M~100MΩ |
| ACV | 110m / 1.1 / 11 / 110 / 1000V | ±(0.7%+50) | 0.01mV | |
| DCA | 110μ / 1100μ / 11m / 110m / 11A | ±(0.5%+4) | 0.01μA | - |
| ACA | 110μ / 1100μ / 11m / 110m / 11A | ±(0.9%+20) | 0.01μA | - |
| Resistance | 110 / 1.1k / 11k / 110k / 1.1M / 11M / 110MΩ | ±(0.3%+6) | 0.01Ω | - |
| Capacitance | 11n / 110n / 1.1μ / 11μ / 110μ / 1.1m / 11m / 110mF | ±(2.0%+20) | 0.001nF | - |
| Continuity | Buzzer sounds and LED lights up at less than 30Ω Open voltage: approx. 0.2V | |||
| Diode test | Open voltage: approx. 0.2V |
Functions:
 |
Continuity Buzzer The buzzer sounds when the measuring object is electrically conducting. |
 |
Range Hold The range is fixed in the measurement of varying voltage and current which is difficult to read in the auto range. |
 |
Capacitor Capacitor capacity (electrostatic capacity) is measured in F (farad), μF, etc. |
 |
Data Hold A value indicated on the display is fixed even after the test lead is removed, and can be used as a record for reference purposes. |
 |
Continuity LED The LED lights up when the measuring object is electrically conducting. |
 |
Auto Power Save The display disappears to bring the device into the power-save state when a certain time has passed after power-up. Some models have a function to cancel this function. |
 |
Duty Cycle The duty cycle of repeating waveform is indicated on a percentage basis (%). It can be used for the analysis of control signals. |
 |
True RMS AC current and voltage of a non-sine wave can be measured by True RMS (Root-Mean-Square) values. |
 |
Frequency in Hertz Commercial frequencies of 50Hz/60Hz can be measured. |
 |
Auto Power Off Power is automatically turned off when a certain time has elapsed after power-up. Some models have a function to cancel this function. |
 |
Relative Value A certain measured value is assumed as 0 and measured values after that are expressed by positive or negative values relative the value fixed as 0. |
 |
Temperature Measurement Temperature can be measured using a probe |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | 11000 Count |
|---|---|
| Sampling Rate | 4 times/sec. |
| Bandwidth | 45Hz~100Hz (110mV range), 45Hz~500Hz (1.1V range), 45Hz~1kHz (11V range and above, ACA) |
| Fuse | 315mA/1000V, breaking capacity 30kA; 12A/1000V, breaking capacity 30kA |
| Battery | 2x R6 |
| Battery Life | Approx.200h (Manganese Battery) at DCV Range |
| Safety | IEC61010 CAT.III 600V / CAT.II 1000V |
| dimensions (H x W x D) | 166 × 82 × 44mm |
