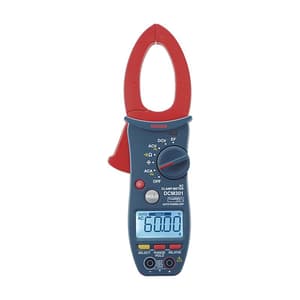

Sanwa 1000A AC Digital TRMS Clamp Meter, DCM301
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 360 g
- Display Counts: 6000 / 9999 (Hz function)
- Sampling Rate: Approx. 3 Times/sec.
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹8,443 (Incl. of all taxes)
₹7,155 + ₹1,288 GST (18%)
MRP was MRP ₹7,950
Save 10%
7 Business Days
1
–
Download Product LeafletNot available
Download Sanwa CatalogueNot available
Download Sanwa CatalogueNot available
Highlights
- The CT shape makes it easier to clamp cable in crowded.
- An electric field (EF) function is incorporated in the tip of the CT to enable detection of about AC 90V or more.
- Large, easy-to -press HOLD button.
- Equipped with LED light to illuminate the measurement target.
Technical Data:
| Function | Range | Accuracy | Resolution |
| ACA | 60.00 / 600.0 / 1000A | ±(2.5%+5) | 0.01A |
| ACV | 6.000 / 60.00 / 600.0 / 1000V | ±(1.5%+3) | 0.001V |
| DCV | 6.000 / 60.00 / 600.0 / 1000V | ±(1%+3) | 0.001V |
| Resistance | 6.000k / 60.00k / 600.0k / 6.000M / 60.00MΩ | ±(2%+5) | 0.001kΩ |
| Frequency | ACV 10Hz-10kHz, ACA 10Hz-2kHz | ±(1%+5) | 0.1Hz |
| Capacitance | 60.00n / 600.0n / 6.000µ / 60.00µ / 600.0µ / 6.000m / 60.00mF | ±(4%+3) | 0.01nF |
 |
Continuity Buzzer The buzzer sounds when the measuring object is electrically conducting. |
 |
Data Hold A value indicated on the display is fixed even after the test lead is removed, and can be used as a record for reference purposes. |
 |
Range Hold The range is fixed in the measurement of varying voltage and current which is difficult to read in the auto range. |
 |
True RMS (True root-mean-square value) True RMS value. AC current and voltage of a non-sine wave can be measured by true RMS values. |
 |
Frequency Expressed in the unit of Hz (hertz). Commercial frequency of 50Hz/60Hz can be measured. |
 |
Capacitor Capacitor capacity (electrostatic capacity) is measured and expressed in the unit of F (farad), μF, etc. |
 |
Measurement of relative value A certain measured value is assumed as 0 and measured values after that are expressed by positive or negative values relative the value fixed as 0. |
 |
Backlight Allows indicator reading in a dark place. |
 |
DC voltage Mark for clamp meters with DCV function. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Counts | 6000 / 9999 (Hz function) |
|---|---|
| Sampling Rate | Approx. 3 Times/sec. |
| Bandwidth | 45-400Hz (ACA) / 45Hz-1kHz ( ACV) |

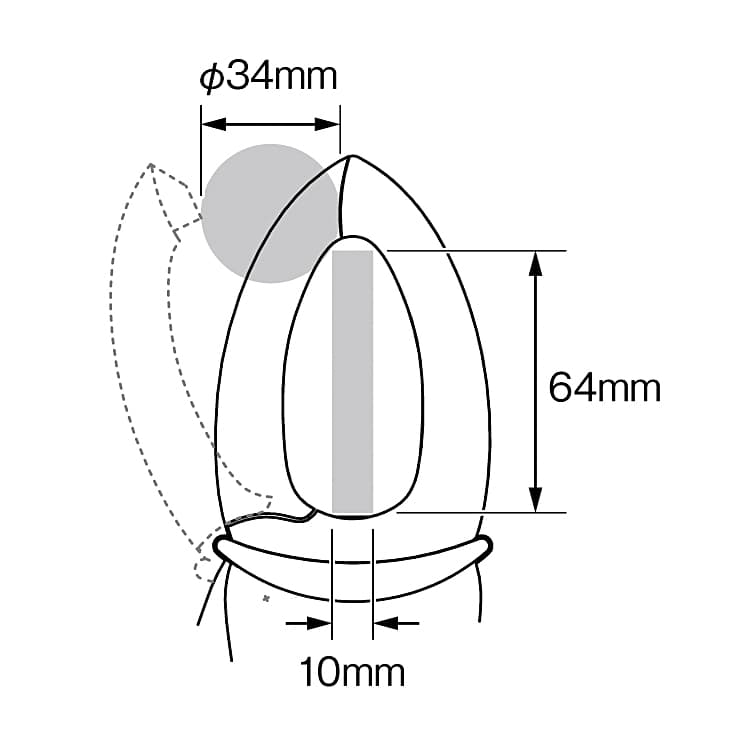

| Clamp Diameter / Conductor Size | Ø 34mm / 10×64 mm |
| Power Supply | 3x LR03 Batteries |
| Battery Life | Approx. 200 hrs. |
| Dimensions (HxWxD) | 252 × 85 × 40 mm |
| Safety Standards | IEC61010 CAT.IV600V/CAT.III 1000V |
