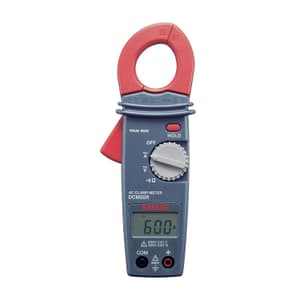

Sanwa 2000 Count TRMS Digital Clamp Meter, DCM60R
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Display: 2000 Count
- Sampling Rate: 2 Times / Sec
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹6,797 (Incl. of all taxes)
₹5,760 + ₹1,037 GST (18%)
MRP was MRP ₹6,400
Save 10%
7 Business Days
1
–
Download Product LeafletNot available
Download Sanwa CatalogueNot available
Download Sanwa CatalogueNot available
Highlights
The DCM60R is a highly accurate, compact and budget-friendly RMS meter that offers a number of useful features. It can measure both AC current and AC voltage, as well as resistance of up to 199.9?, and perform continuity tests. It's 2000 count display is easy to read and features a data hold function. This device is compliant with IEC61010-1, and IEC61010-2-030 CAT.III 300V / II 600V IEC61010-2-032, IEC61010-2-033, IEC61010-31 standards, and is designed for measuring the current of electrical lines, appliances and power supply facilities operating on low voltages in the ranges of CAT. III environment.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- True RMS
- 2000 Count Display
- Low cost & DMM functions
- Data hold function
- Compliant with IEC standards
Technical Data:
| Range | Accuracy | Resistance | |
| ACA | 199.9/600A | ±(2%+5) | 0.1A |
| ACV | 199.9/600V | ±(1.5%+5) | 0.1V |
| Resistance | 199.9Ω | ±(1.0%+8) | 0.1Ω |
| Continuity | Buzzer sounds at less than 100Ω |

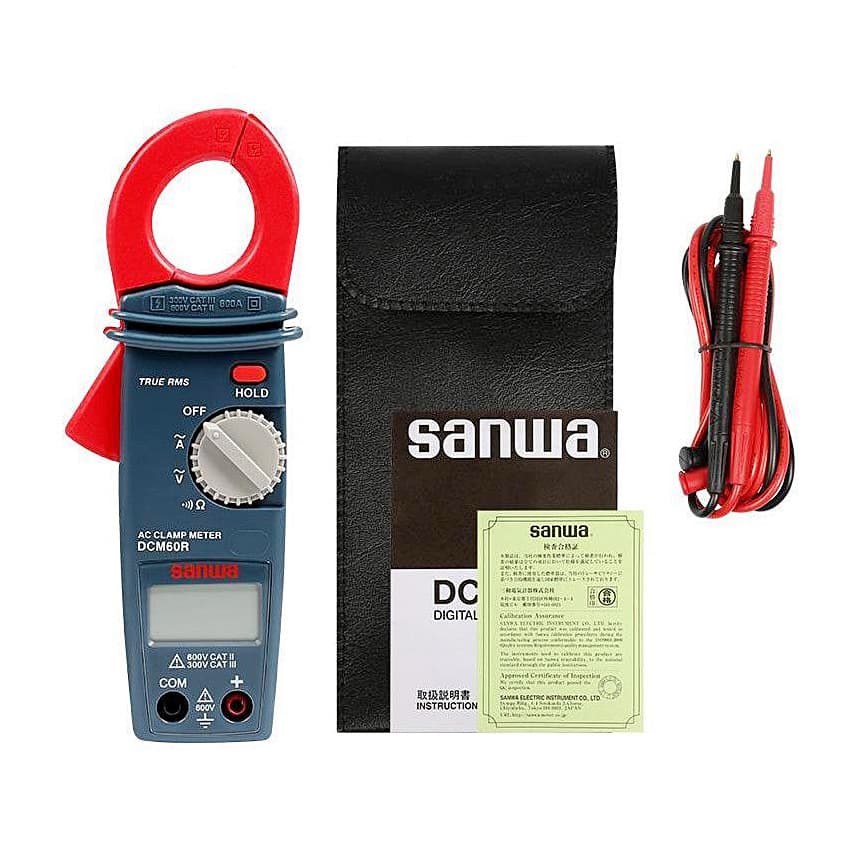

Package Content:
- Digital Clamp Meter
- Test Leads (TL-21a)
- Carrying Case (C-DCM60L)
- Instruction Manual
Functions:
 |
True RMS AC current and voltage of a non-sine wave can be measured by True RMS (Root-Mean-Square) values. |
 |
Continuity Buzzer The buzzer sounds when the measuring object is electrically conducting. |
 |
Data Hold A value indicated on the display is fixed for reference even after the test lead is removed. |
|
Data Hold A value indicated on the display is fixed even after the test lead is removed, and can be used as a record for reference purposes. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | 2000 Count |
|---|---|
| Sampling Rate | 2 Times / Sec |
| AC Measuring Method | True RMS |
| Range Selection | Auto |
| Battery Low Warning | Battery ( ) Mark Lights at Approx. 2.2v or Below |
| Operating Temperature / Humidity | 0°C~40°C, Below 80% RH No Condensation |
| Storage Temperature / Humidity | -10°C~60°C, Below 70% RH No Condensation |
| Continuous Use Time | About 250 Hours |
| Power Consumption | Approx. 5.0mW |
| Safety Standards | IEC61010-1, IEC61010-2-030 CAT.III 300V / II 600V IEC61010-2-032, IEC61010-2-033, IEC61010-31 |
| Bandwidth | 50~400Hz |

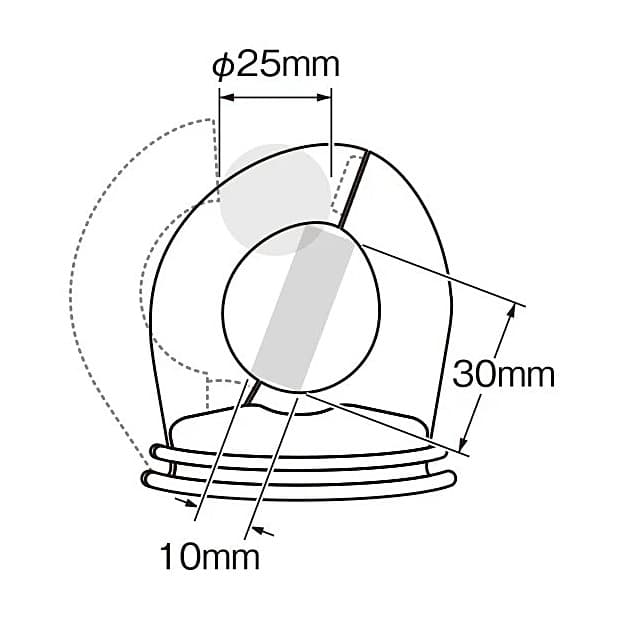

| Clamp Diameter / Conductor Size | 25mm / 10 x 30 mm |
| Battery | R03(UM-4) or AAA x 2 |
| Dimensions (H x W x D) | 187 x 50 x 29 mm |
