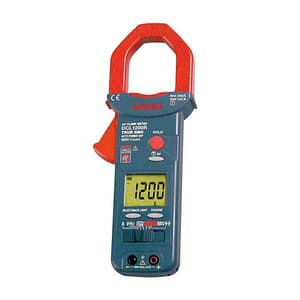

Sanwa 6000 Count TRMS AC Clamp Meter with Digital Multimeter Functions, DCL1200R
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 290 g
- Display: 6000 Count
- Sampling Rate: 5 Times / Sec.
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹14,443 (Incl. of all taxes)
₹12,240 + ₹2,203 GST (18%)
MRP was MRP ₹13,600
Save 10%
7 Business Days
1
–
Download Sanwa CatalogueNot available
Highlights
The DCL1200R is an AC clamp meter of the RMS value response type, designed for measurements in the range specified by IEC61010-2-032 CAT.III 600V. It is suitable for current and voltage measurements of low-voltage circuitry, electric equipment and power supply facilities. This clamp-meter can measure AC current of up to 1200 Amperes with an accuracy of 1.7%. It has a 6000-count display with a backlight. The device is also a digital multimeter that can measure AC/DC voltages, frequency of up to 30 kHz and capacitance, and it also has an Auto resistance feature that allows users to automatically measure resistances without the need for changing the range. The device can also perform Diode and Continuity tests (with a buzzer). It can also wirelessly detect voltages of 15 V and above at 50/60 Hz. The DCL1200R is compliant with the IEC61010-2-032, CAT.III 600V, IEC61010-031 safety standards, and IEC61326-1 EMC directives.
Features:
- AC current measurable max. 1200A & DMM function
- 6000 Count Display
- True RMS
- EF (Electric Field) sensing
- Large LCD with Back light
- Data hold
- Range hold
- Auto power save(3~) (non-cancelable)
Technical Data:
| Function | Range | Accuracy | Resolution |
| ACA | 400/1200A | ±(1.7%+5) | 0.1A |
| DCV | 6/60/600V | ±(0.7%+3) | 0.001V |
| ACV | 6/60/600V | ±(1.7%+5) | 0.001V |
| Auto resistance | 6k/60k/600k/6MΩ | ±(1.2%+4) | 1Ω |
| Resistance | 600 Ω | ±(2.2%+8) | 0.1 Ω |
| Frequency | 9.999/99.99/9.999k/30kHz | ±(0.6%+4) | 0.001Hz |
| Capacitance | 100n/1000n/10 μ/100 μ2000 μF | ±(3.7%+5) | 0.1nF |
| Continuity |
|
||
| Diode test | Open voltage: approx. 1.6V | ||
| Voltage detection |
|
 |
Continuity Buzzer The buzzer sounds when the measuring object is electrically conducting. |
 |
True RMS AC current and voltage of a non-sine wave can be measured by True RMS (Root-Mean-Square) values. |
 |
Frequency in Hertz Commercial frequencies of 50Hz/60Hz can be measured. |
 |
Capacitor Capacitor capacity (electrostatic capacity) is measured in F (farad), μF, etc. |
 |
Data Hold A value indicated on the display is fixed for reference even after the test lead is removed. |
 |
Auto Power Off Power is automatically turned off when a certain time has elapsed after power-up. Some models have a function to cancel this function. |
|
Data Hold A value indicated on the display is fixed even after the test lead is removed, and can be used as a record for reference purposes. |
 |
Backlight Backlit display allows indicator reading in a dark place. |
 |
EF Non-Contact Voltage Non-contact AC voltage detection |
 |
Automatic Measurement Automatic Measurement Function for DCV/ACV/Ω. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | 6000 Count |
|---|---|
| Sampling Rate | 5 Times / Sec. |
| Bandwidth | ACA 50/60Hz / ACV 50 - 500Hz |
| Clamp Diameter | Ø42 mm |
| Conductor Size (mm) | 20 × 54 mm |
| Battery | 2 x R03 |
| Battery Life | Approx. 90 hrs. at DCV (Alkaline battery / Backlight off) |
| Safety Standards | IEC61010 CAT III 600V |
| Dimension (H x W x D) | 238 x 95 x 45 mm |
