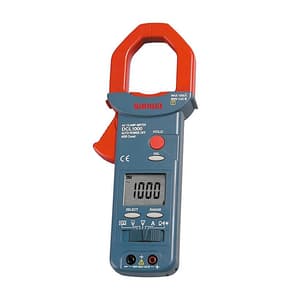

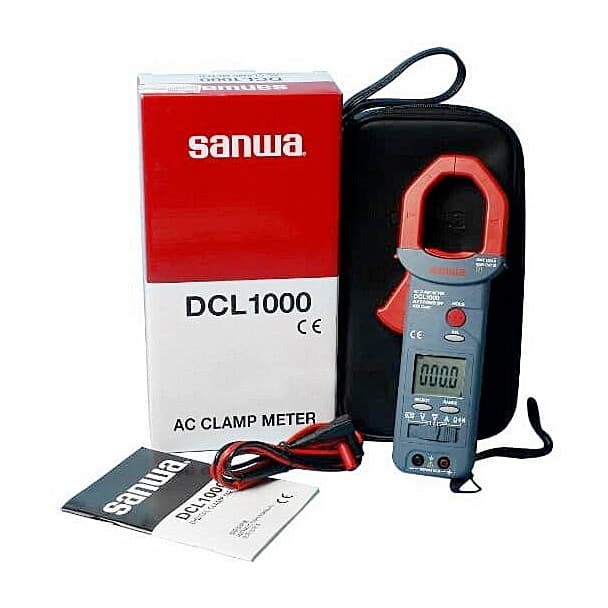

Sanwa 4000 Count AC Clamp Meter, DCL1000
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 290 g
- Display: 4000 Count
- Sampling Rate: 3 Times / Sec.
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹9,983 (Incl. of all taxes)
₹8,460 + ₹1,523 GST (18%)
MRP was MRP ₹9,400
Save 10%
7 Business Days
1
–
Download Product LeafletNot available
Download Sanwa CatalogueNot available
Download Sanwa CatalogueNot available
Highlights
The DCL1000 is suitable for current and voltage measurements of low-voltage circuitry, electric equipment, and power supply facilities. This instrument is an AC clamp meter/digital multimeter, designed for measurements in the range specified by IEC61010-2-032 CAT.III 600V. The clamp current sensor in the DCL 1000 can measure a max current of 1000A. It features a large 4000-count display, a Data Hold function for pausing a reading on the screen and Range Hold for manually changing the device's range. This device also functions as a Digital Multimeter with essential features such as measuring AC and DC voltages with 3% accuracy, Resistance of up to 40MΩ, and a continuity test with a buzzer alarm. The device is very portable, it has dimensions of H238 x W95 x D45mm and weighs approximately 290 grams which is lighter than a conventional clamp meter.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- AC current measurable max. 1000A & DMM functions
- Large LCD
- Data hold
- Range hold
- Relative value
- Auto power save (30min.) (non-cancelable)
- Lightweight approx. 290g
- Design compliance with IEC
Technical Data:
| Function | Range | Accuracy | Resolution |
| ACA | 400 / 1000A | ±(1.7%+5) | 0.1A |
| DCV | 400m / 4 / 40 / 400 / 600V | ±(1.2%+3) | 0.1mV |
| ACV | 400m / 4 / 40 / 400 / 600V | ±(2.2%+5) | 0.1mV |
| Resistance | 400 / 4k / 40k / 400k / 4M / 40MΩ | ±(1.2%+4) | 0.1Ω |
| Continuity |
|
||
| Diode test | Open voltage: approx. 1.6V |
 |
Continuity Buzzer The buzzer sounds when the measuring object is electrically conducting. |
 |
Data Hold A value indicated on the display is fixed for reference even after the test lead is removed. |
|
Data Hold A value indicated on the display is fixed even after the test lead is removed, and can be used as a record for reference purposes. |
 |
Auto Power Off Power is automatically turned off when a certain time has elapsed after power-up. Some models have a function to cancel this function. |
 |
Range Hold The range is fixed in the measurement of varying voltage and current which is difficult to read in the auto range. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | 4000 Count |
|---|---|
| Sampling Rate | 3 Times / Sec. |
| Bandwidth | ACA 50/60Hz / ACV 50 - 500Hz (Sine Wave) |

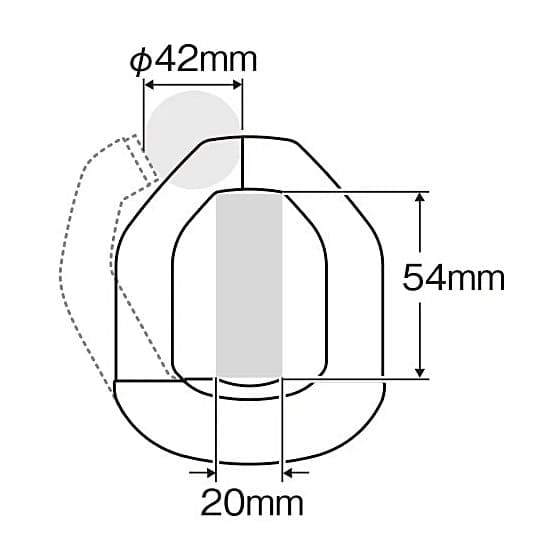

| Clamp Diameter | Ø42 mm |
| Conductor Size (mm) | 20 × 54 mm |
| Battery | 2 x R03 |
| Battery Life | Approx. 120 hrs. at DCV (Zinc-carbon Battery) |
| Safety Standards | IEC61010 CAT III 600V |
| Dimension (H x W x D) | 238 x 95 x 45 mm |
