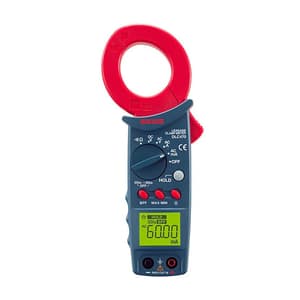

Sanwa 6000 Count Multifunctional Leakage Clamp Meter, DLC470
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 320 g
- Display: 6000 Count (A/V) / 9999 Count (O)
- Sampling Rate: 2 Times/sec.
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹36,639 (Incl. of all taxes)
₹31,050 + ₹5,589 GST (18%)
MRP was MRP ₹34,500
Save 10%
7 Business Days
1
–
Download Sanwa CatalogueNot available
Highlights
The device can measure both currents and voltages along with resistances. It can measure AC current of up to 400 Amperes with an accuracy of 1.2%, and AC/DC voltages of up to 600 Volts with an accuracy of 1.2% as well. The DLC470 has max/min hold function for holding the maximum or the minimum readings on the screen, as well as a hold function for holding or pausing a reading on the screen. The instrument also features an ACA LPF (Low Pass Filter) function that attenuates high frequencies to reduce noise for accurate readings. The device requires 2x LR03 batteries for operation and consumes an average power of 33mW. It is compliant with the IEC61010-1 CAT.III 600V, IEC61010-2-032, IEC61010-031 safety standards.
Features:
- Compatible to IEC61010 CAT.III
- Extract frequency range of mainly ACmA 50Hz/60Hz and ACA, with band-pass filter (BPF) function.
- Measures mA with resolution 0.01mA
- MAX/MIN value hold
- Auto power off (30 min./Cancelable)
- Leakage current measurement Resolution 0.01mA
- Backlit LCD Display
Technical Data:
| Function | Range | Accuracy | Resolution |
| ACmA | 60.00mA/600.0mA | ±(1.2%+5) | 0.01mA |
| ACA | 60.00A/400.0A | ±(1.2%+5) | 0.01A |
| ACV | 600.0V | ±(1.2%+5) | 0.1V |
| DCV | 600.0V | ±(1.0%+2) | 0.1V |
| Resistance | 999.9Ω | ±(1.0%+8) | 0.1Ω |
| Continuity | Buzzer sounds at 30Ω or below Open voltage: Approx. 0.9V |
 |
Continuity Buzzer The buzzer sounds when the measuring object is electrically conducting. |
 |
Data Hold A value indicated on the display is fixed for reference even after the test lead is removed. |
 |
Auto Power Off Power is automatically turned off when a certain time has elapsed after power-up. Some models have a function to cancel this function. |
 |
Backlight Allows indicator reading in a dark place |
 |
Leakage Current A clamp meter that can measure leakage current with a range that allows measurement in milliamps. |
 |
Max Min The maximum and minimum values are displayed and/or recorded. |
 |
BandPass Filter Pass through a particular frequency and will reduce other bandwidth. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | 6000 Count (A/V) / 9999 Count (O) |
|---|---|
| Sampling Rate | 2 Times/sec. |
| Bandwidth | 40 - 400 Hz |

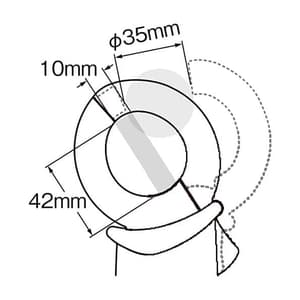

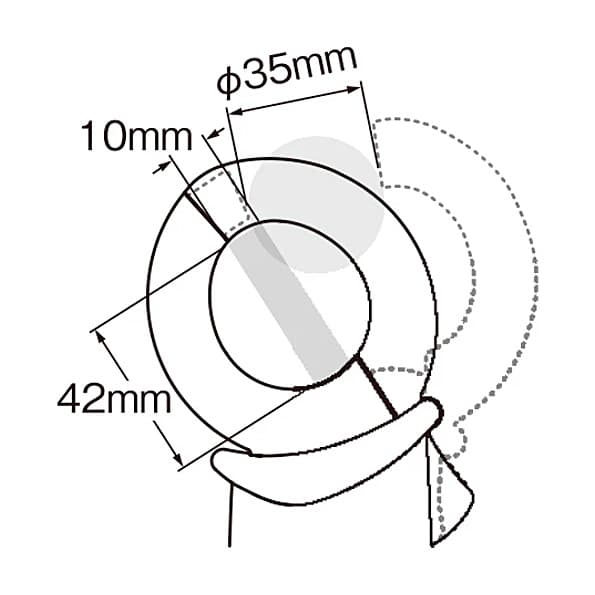

| Clamp Diameter | Ø35 mm |
| Conductor Size (mm) | 10 x 40 mm |
| Battery | 2 x LR03 |
| Battery Life | Approx. 42 hrs. (Alkaline Battery/backlight Off) |
| Safety Standards | IEC61010 CAT.III600V |
| Dimension (H x W x D) | 206 × 83 × 38 mm |
