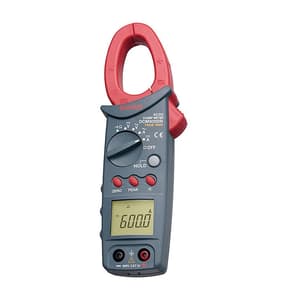

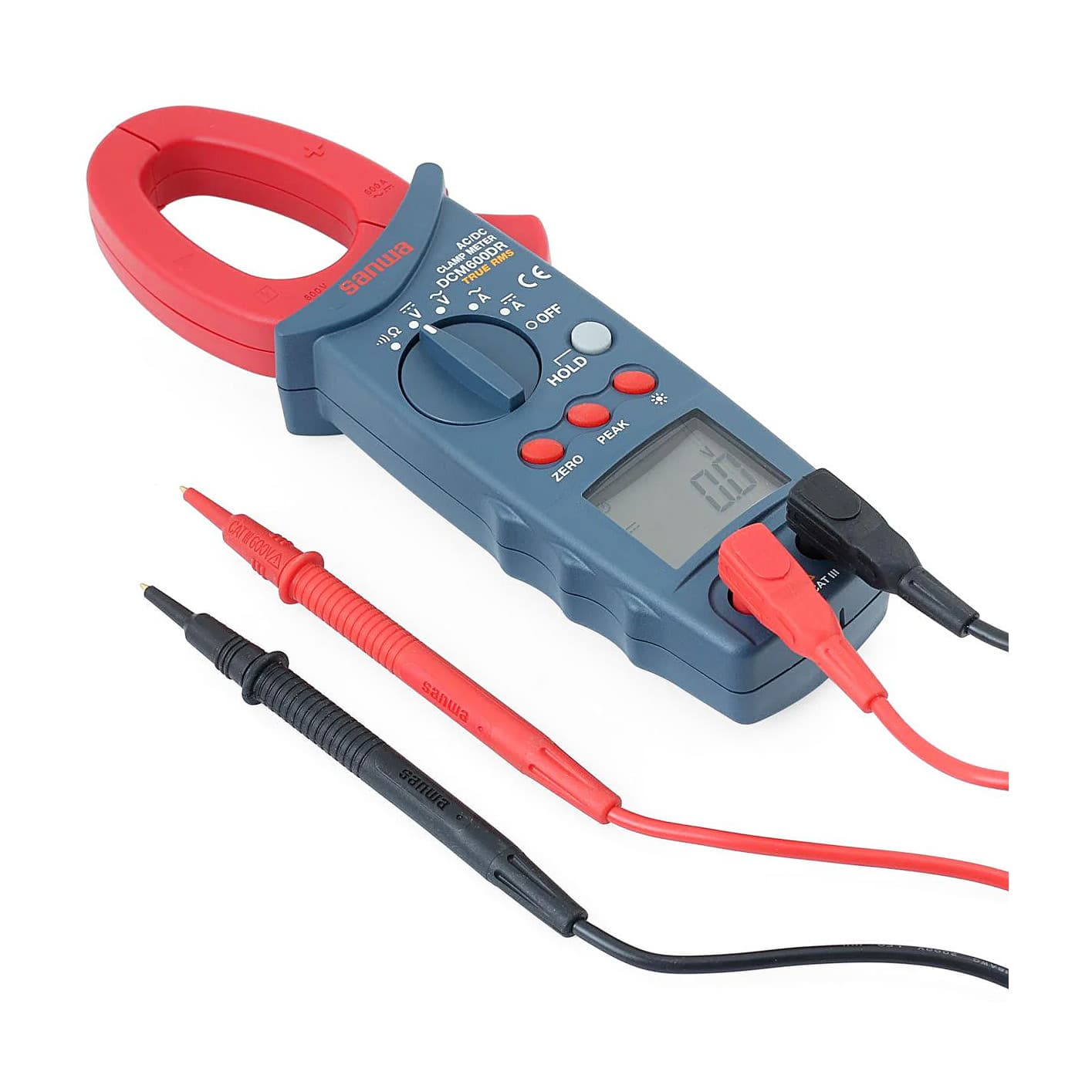

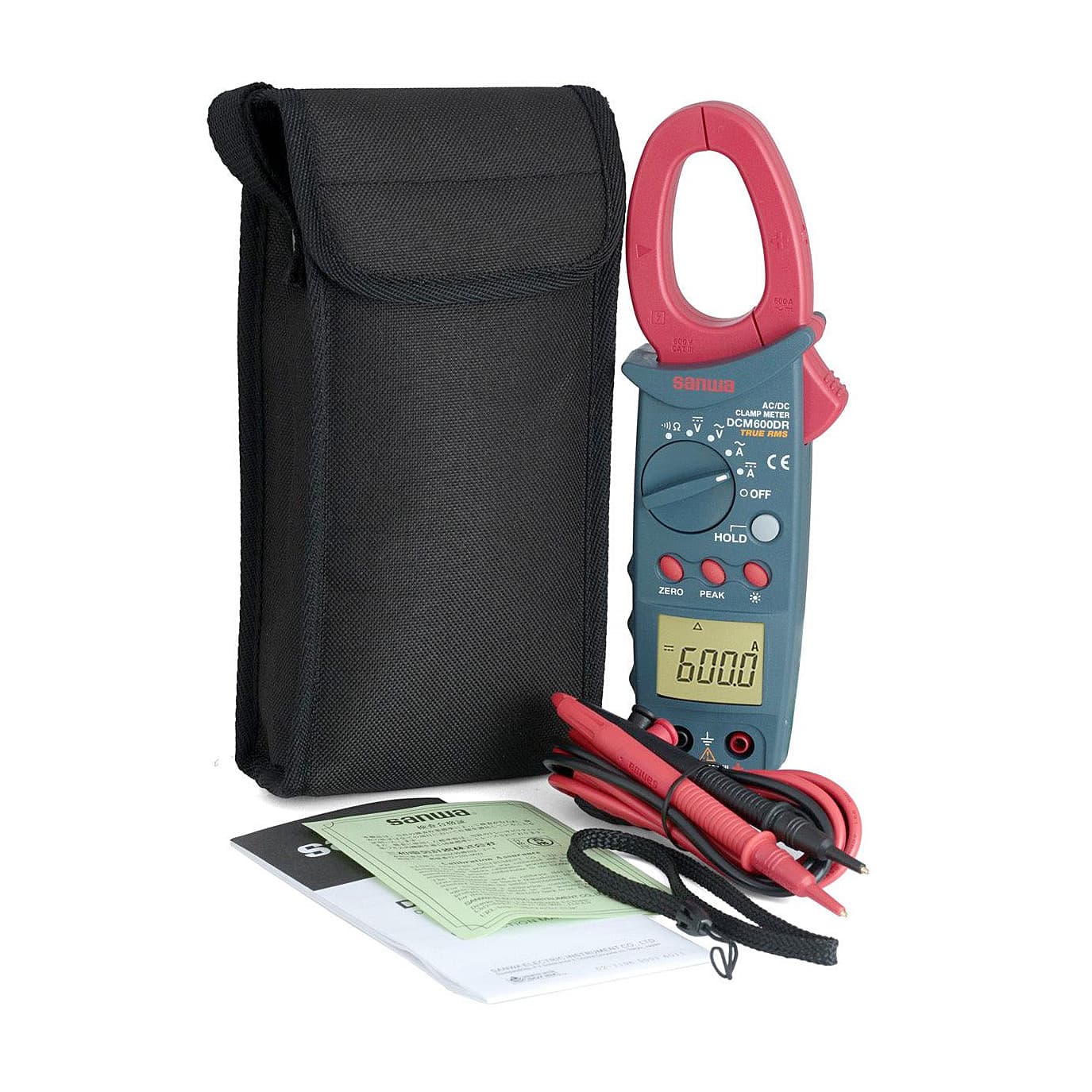

Sanwa 6000 Count TRMS Digital Clamp Meter, DCM600DR
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 260 g
- Display: 6000 Count
- Sampling Rate: 3 Times / Sec.
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹18,691 (Incl. of all taxes)
₹15,840 + ₹2,851 GST (18%)
MRP was MRP ₹17,600
Save 10%
7 Business Days
1
–
Download Product LeafletNot available
Download Sanwa CatalogueNot available
Download Sanwa CatalogueNot available
Highlights
This DCM600DR can measure a maximum of 600 Amperes of AC/DC current. It can measure AC/DC current up to 600 Volts, the resistance of 999.9Ω, and perform continuity tests with a buzzer alarm. This device is suitable for current and voltage measurements of low-voltage circuitry, electric equipment, and power supply facilities. The device offers various functions such as data hold, peak hold, zero, etc. It features a 6000-count display with a back-light feature. The device also has an auto-power save feature that turns the screen off after 30 minutes of no use.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- AC/DC current measurable max. 600A & DMM function
- True RMS
- 6000 count LCD with Backlight
- Data hold
- Relative value
- Peak hold (1ms)
- Auto power save (30min after the last operation) (non-cancelable)
Technical Data:
| Function | Range | Accuracy | Resistance | Input Impedance |
| DCA / ACA | 60/600A | ±(2%+5) | 0.01A | - |
| DCV | 600V | ±(1%+2) | 0.1V | 1MΩ |
| ACV | ±(1.2%+5) | |||
| Resistance | 999.9Ω | ±(1%+7) | 0.1Ω | - |
| Continuity |
|
 |
True RMS AC current and voltage of a non-sine wave can be measured by True RMS (Root-Mean-Square) values. |
 |
Continuity Buzzer The buzzer sounds when the measuring object is electrically conducting. |
 |
Data Hold A value indicated on the display is fixed for reference even after the test lead is removed. |
|
Data Hold A value indicated on the display is fixed even after the test lead is removed, and can be used as a record for reference purposes. |
 |
Peak Hold The peak value like in-rush current is indicated. The minimum pulse width capturable differs according to models. |
 |
Auto Power Save The display disappears to bring the device into the power-save state when a certain time has passed after power-up. Some models have a function to cancel this function. |
 |
Backlight Backlit display allows indicator reading in a dark place. |
 |
Relative Value A certain measured value is assumed as 0 and measured values after that are expressed by positive or negative values relative the value fixed as 0. |
 |
AC/DC Amperage Measure Both AC & DC Amps. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | 6000 Count |
|---|---|
| Sampling Rate | 3 Times / Sec. |
| Bandwidth | 50 - 500Hz |

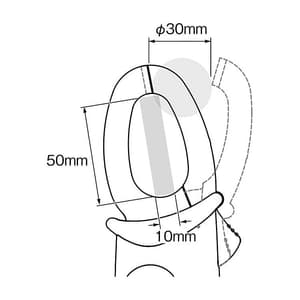

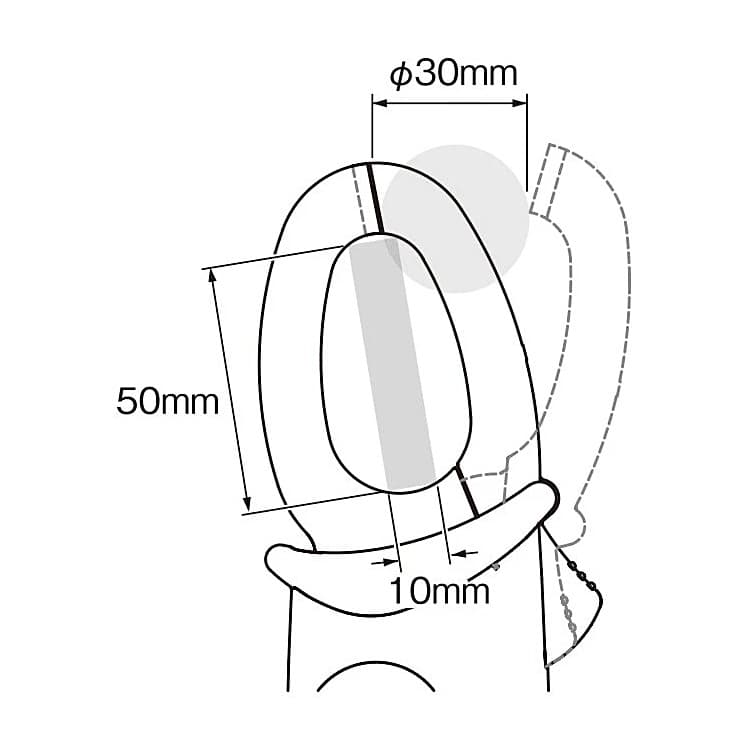

| Clamp Diameter | Ø30 mm |
| Conductor Size (mm) | 10 × 50 mm |
| Battery | 2 x LR03 |
| Battery Life | Approx. 40 hrs. (Backlight off) |
| Safety Standards | IEC61010 CAT.III600V |
| Dimension (H x W x D) | 208 × 69 × 38 mm |
