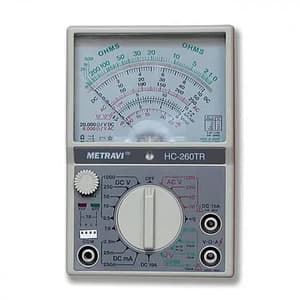

Metravi 1000 V DC / AC Voltage Hand Held Analogue Multimeter, 260TR
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 370 g
- Power Supply: 1.5V AA Penceil Batteries
- DC Voltage Range: 0 – 2.5 V / 10 V / 50 V / 250 V / 1000 V
- AC Voltage Range: 0 – 10 V / 50 V / 250 V / 1000 V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,863 (Incl. of all taxes)
₹1,579 + ₹284 GST (18%)
MRP was MRP ₹2,322
Save 32%
5 Business Days
1
9030
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
The 260TR Pocket Multimeter is a universally usable multi-function instrument. The instrument has been designed in accordance with the most up-to-date safety regulations and ensures safe, reliable measurement.
The compact 260TR Pocket Multimeter is a useful aid, for all standard measurements, to the electrician on site, in industry or for hobby electronics.
Features:
- Front Panel Controls : Range-Function Switch, Ohms Adjust, TR checker
- Movement : Jewelled-pivots-90° arc, 40uA F.S.
- Dial Arcs : One arc for ohms. One arc for DC, One arc for AC, One arc for DB, Two arcs for TR leakage current measurement (Vf Scale) and diode/LED quality measurement (IfIr scale)
- Scale Length : 89 mm (3½ Inches)
- Lead Reversal : Polarity Reverse Switch; on DC and ohms ranges
- Operating : Horizontal or vertical; rubber faet
- Position : Prevent slipping on moderate slopes
- OFF position : The instrument is provided with "OFF" position where the range switch should be set when not in use or during transit the meter should be damped to prevent damage to the movement
- Movement & Indicator protection : Silicon double diode across movement terminals & fuse (2A 250V)
- Test Leads : The Test Leads supplied with the equipment give added safety to the user since the jacks are shrouded thus avoiding dangerous conections to eventual high voltages. The prods supplied have guard rings to keep fingers away from the naked end
- Operating Temperature : 25°C (75°F) for rated accuracy; less than 4% additional error over the Range of +25°F to +130°F (-4 ~ 50°C)
Whats Included In This Package:
- 2 x 1.5V AA Penceil & 9 V battery
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Power Supply | 1.5V AA Penceil Batteries |
|---|---|
| DC Voltage Range | 0 – 2.5 V / 10 V / 50 V / 250 V / 1000 V |
| DC Voltage Range (Accuracy) | Within ±3 % DC Of Full Scale On All Ranges |
| DC Volts (Sensitivity) | 20,000 Ohms Per Volt |
| AC Voltage Range | 0 – 10 V / 50 V / 250 V / 1000 V |
| AC Volts (Sensitivity) | 8,000 Ohms per volt |
| AC Voltage Range Indication | Full wave average responding calibrated in RMS for sinusoldal Wave Forms Frequency Rated Accuracy |
| AC Volts (Frequency) | Rated Accuracy to 50000 Hz |
| AC Volts (Frequency Rated Accuracy) | Within ±4 % AC of full scale on all ranges |
| DC Current Range | 2.5, 25, 250mA, 10A, 10A On Separate Jack |
| DC Current Range (Potential Drop) | 0.25V on all Ranges |
| DC Current Range (Rated Accuracy) | Within ±3 % Full scale, all ranges |
| Resistance Range | Rx1 0-2000 ohm (20 ohm center), Rx 10 0-20,000 ohm (200 ohm center), Rx 1K 0-2M ohm (20K ohm center), R x 10k 0-20 Mohm (200K ohm center) |
| Resistance Range (Accuracy) | ±3° arc Max. Voltage or Current Delivered, Rx 1, 150mA short circuit, 3V open circuit, Rx 10, 15 mA short circuit 3V open circuit, Rx 1K, 150μA short circuit, 3V open circuit, Rx 10K, 60μA short circuit 12V open circuit |
| DB Ranges | -10 DB to + 22DB ON 10V AC range, + 4 DB to + 36DB ON 50V AC range, +18DB to + 50DB ON 250V AC range, +30DB to, + 62DB on 1000V AC range, Zero DB reterenced to 1 milliwatt at 600 Ohms |
| Length x Width x Height | 192 x 150 x 45 |
| Certifications | CAT-III 600V, IEC 61010 |
