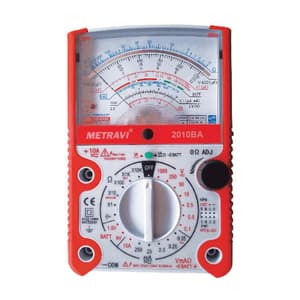

Metravi 1000 V DC / AC Voltage Tester Analogue Multimeter, 2010BA
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 460 g
- Power Supply: R6P, AA, 1.5V Internal Batteries
- DC Voltage Range: 0 - 0.1 V / 0.5 V / 2.5 V / 10 V / 50 V / 250 V / 1000 V
- AC Voltage Range: 0 - 0.1 V / 0.5 V / 2.5 V / 10 V / 50 V / 250 V / 1000 V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,925 (Incl. of all taxes)
₹2,479 + ₹446 GST (18%)
MRP was MRP ₹3,645
Save 32%
5 Business Days
1
9030
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
The multimeter allows us to measure:
- Measuring and displaying electric quantities in the range of overvoltage category CAT II up to max. 1,000V; CAT III up to max. 500V to ground potential, in accordance with EN 61010-1.
- Measuring alternating and direct voltages of up to 1,000 V Max.
- Measuring alternating and direct currents of up to 10 A Max.
- Measuring resistances of up to 20 MΩ
- Acoustic continuity checks
- Diode tests
- Transistor tests
Features:
| Over-voltage category | CAT II 1,000V, CAT III 500V to ground potential |
| Standard Environment | 23°C±3°C, less than 75% RH. |
| Temperature Ranges | 0°C to 40°C, 32°F to 104°F for Operating condition. -10°C to 50°C, 14°F to 122°F for Storage condition. |
| Humidity Scope | Operating condition less than 90% RH. Storage condition: less than 80% RH |
| Operating altitude | Max. 2,000 m |
Whats Included In This Package:
- 1x set of CAT III 600V/10A class Test Leads
- 1x Safety ceramic-tube Fuse 0.5A/500V on PCBA
- 1x Safety ceramic-tube Fuse 10A/500V on PCBA
- 2x R6P, AA, 1.5V Batteries
- 1x 6F22, NEDA1604, 9V
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Power Supply | R6P, AA, 1.5V Internal Batteries |
|---|---|
| DC Voltage Range | 0 - 0.1 V / 0.5 V / 2.5 V / 10 V / 50 V / 250 V / 1000 V |
| DC Voltage Range (Accuracy) | ±3 % of FSD, ±4 % of FSD. at 0.1 V range |
| AC Voltage Range | 0 - 0.1 V / 0.5 V / 2.5 V / 10 V / 50 V / 250 V / 1000 V |
| AC Voltage Range (Accuracy) | ±4 % of FSD, ±5 % of FSD, at 0.1 V range Band width: 40 ~ 2K Hz |
| DC Current Range | 0 - 0.05 / 0.25 / 2.5 / 25 / 250 mA,10 A |
| DC Current Range (Accuracy) | ±3 % of FSD, ±4 % of FSD, For 10A Range |
| AC Current Range | 0 - 0.05 / 0.25 / 2.5 / 25 / 250 mA,10 A |
| AC Current Range (Accuracy) | ±4 % of FSD, Band width: 40 ~ 2,000 Hz |
| Resistance Range | 0 – 200 Ohm / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm / 20MOhm |
| Resistance Range (Accuracy) | ±3 % of ARC (Scale Length) |
| Transistor Check | hFE: 0-1000 via jacks & test leads |
| Diode Check | IF, IR, LI, LV |
| Continuity Check | < 200 Ohm, Beeper sounding |
| Length x Width x Height (mm) Including Holster | 160 x 105 x 40 |
| Certifications | CAT-III 600V, IEC 61010 |
