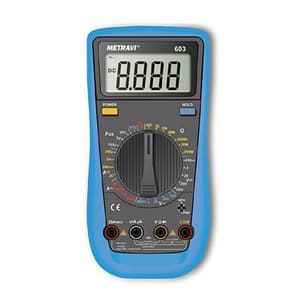

Metravi 3-1/2 Digits / 1000V Digital Multimeter, 603

Shop all Metravi

SKU: ME.EL.MU.00062

Model: 603

Roll over the image to zoom in


Key Features

  • Product Type: Multimeter
  • Weight: 318 g
  • DC Voltage Range: 0-200mV/2V/20V/200V/1000V
  • AC Voltage Range: 0-200mV/2V/20V/200V/750V
  • AC Current Range: 0-200uA/2mA/200mA/20A
See all product information

ToolBuy Benefits

₹2,275 (Incl. of all taxes)

₹1,928 + ₹347 GST (18%)

MRP was MRP ₹2,835

Save 32%


Out of Stock

5 Business Days

1

9030

Download Product LeafletNot available
Download Metravi CatalogueNot available

Highlights

Metravi 603 Digital Multimeter is a 31⁄2 digits meter with steady operations, and highly reliable hand-held measuring instrument having different measurement positions. The 603 can not only measure AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode & Continuity Test, and Transistor Test but also has range display.


Features:

  • Auto Power Off
  • Overload Indication
  • Low Battery Indication
  • Data Hold to freeze the displayed reading
  • Display: 3-1/2 digits 1999 Counts Backlit Extra Large LCD
  • With Diode Test, Transistor Test, and Audible Continuity Test Facility.
  • Operating temperature : 0°C to + 50°C-70% RH.
  • Storage temperature : -20°C to 60°C, 0-80% RH with battery removed
  • Accuracy : Accuracy specifications at 23 ± 5°C less than 75% RH
  • CAT II 600V

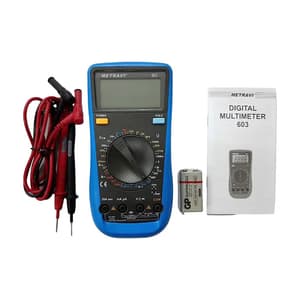

What's Included In This Package:

  • Test leads
  • Spare Fuse
  • Operating Manual
  • Battery
  • Carrying Case

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Metravi 3-1/2 Digits / 1000V Digital Multimeter, 603
DisplayBacklit LCD
ColourBlue-Black
Sampling Time3 times/sec
Power SourceBattery Operated
Battery Size9V
No of Batteries1
Battery TypeAlkaline
DC Voltage Range0-200mV/2V/20V/200V/1000V
DC Voltage Accuracy±0.5%
AC Voltage Range0-200mV/2V/20V/200V/750V
AC Voltage Accuracy±0.8%
AC Current Range0-200uA/2mA/200mA/20A
AC Current Accuracy±1.2%
DC Current Range0-200uA/2mA/200mA/20A
DC Current Accuracy±0.8%
Capacitance Range0-20nF/2uF/200uF
Capacitance Accuracy±4.0%
Resistance Range0-200/2k/20k/200k/2M/20M/200M
Resistance Accuracy±0.8%
DC Voltage Resolution0.1mV to 1V
AC Voltage Resolution0.1mV to 1V
DC Current Resolution0.1μA to 10mA
AC Current Resolution0.1uA to 10mA
Capacitance Resolution10pF to 100nF
Resistance Resolution0.1 to 100k
CertificationsCAT II 600V
