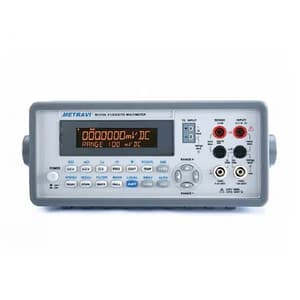

Metravi 1000 V DC Voltage Tester Bench Type Multimeter With LCD Display, M-3511A
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 2.23 kg
- Power Supply: Mains Operated
- DC Voltage Range: 0 - 100 mV / 1 V / 10 V / 100 V / 1000 V
- AC Voltage Range: 0 - 100 mV / 1 V / 750 V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹92,075 (Incl. of all taxes)
₹78,030 + ₹14,045 GST (18%)
MRP was MRP ₹1,14,750
Save 32%
5 Business Days
1
90303100
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
6-1/2 Digits M-3511 Bench type Multimeter AC/DC V, AC/DC Current, Resistance, Cap and Frequency.
- Power Supply: 100V / 120V / 220V (230V) / 240V
- Best performance / price ratioMeasuring principle : S -D A/D conversion
- High-speed sampling rate (50000 Rdgs/sec)Measuring speed : 2 times/second roughly; 100 times/second when measuring at the maximal or minimal value;
- Direct thermocouple Measurment (Built-In cold junction Compensation to improve Accuracy)
- Dual measurement & Dual Display (Including Thermocouple Measurement)
- Capacitance Measurement
- Several Measurements & Mathematic Functions
- Wide Range Current Measurement (Up to 10A)
- DCV Accuracy (0.012% in 1 year)
- High Sensitivity (DCV : 0.1µV & Resistance : 100µΩ)
- Plug & Play Inferface : Built - In USB (USBTMC)
- High Storage Memory (Up to 2000 Readings)
- Free Application Software
- Power Consumption 25 VA Maximum
- Operating Temperature of 0ºC to 50ºC
- Maximum relative humidity 80% for temperature up to 35ºC.
- Storage temperature upto - 40ºC to 70ºC
- Operating altitude Up to 2000 M
- Vibration MlL- 28800F, 3.8.4.2 VI Vibration,Sinusoidal Class 1,2
- Shock MIL- PRF-28800F, 4.5.5.4 Mechanical
- Note: The 1-year accuracy is subject to calibration accuracy.
- Thermocouple (only in M- 3510A): : -250ºC ~ 2316ºC
- RTD: 2W & 4W
- Frequency & Period: 100mV to 750V (From 3Hz to 300KHz)
- Diode: 1V
- Continuity (for 2W): 1000Ω
Display Features:
- Full Math Functions - Percent, Average, Null, Limits, MX+ B, dB & dBm.
- Resolution Adjustment -0.001, 0.006, 0.02, 0.06, 0.2, 0.6, 1. 2, 10 & 100 NPLC
- USB & GPI B (Optional) remote control interface.
- Through M3511 AP software ( PT - TOOL) for simuIating the real operation on PC.
- Through Microsoft Office Word & Excel (PT - LINK) for remotely storing and recalling the measured values.
Whats Included In This Package:
- 1x One power line cord
- 1x One USB cable
- 1x Standard Test Leads
- 1x One CD (including this electronic User’s Manula and softwre application
- 1x Optional accessories (According to the Table 1-1) as you ordered
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Power Supply | Mains Operated |
|---|---|
| DC Voltage Range | 0 - 100 mV / 1 V / 10 V / 100 V / 1000 V |
| DC Voltage Range (Accuracy) | ±0.009 % |
| DC Voltage Resolution | 0.1μV to 1mV |
| AC Voltage Range | 0 - 100 mV / 1 V / 750 V |
| AC Voltage Range (Accuracy) | ±0.12 % |
| AC Voltage Resolution | 0.1μV |
| DC Current Range | 0 – 10 mA / 100 mA / 1 A / 10 A |
| DC Current Range (Accuracy) | ±0.05 % |
| DC Current Resolution | 10nA to 10 μA |
| AC Current Range | 0 – 1 A / 10 A |
| AC Current Resolution | 1μA |
| AC Current Range (Accuracy) | ±0.2 % |
| Frequency Range | 0 - 300kHz |
| Frequency Range (Accuracy) | ±0.03 % |
| Capacitance Range | 0 – 1nF / 10nF / 100nF / 1uF / 10uF / 100uF / 1000u / 10000uF |
| Capacitance Accuracy | ±1 % |
| Sampling Time | 50000 Readings / Sec |
| Memory & Storage | 2000 Readings |
| PC Interface | USB Interface |
| Length x Width x Height (mm) | 281 x 215 x 87 |
| Certifications | CAT II 600V, EN 61010-1:2010, EN 61010-2-030:2010, EN 61326-1, EN-61010-1, Pollution Grade 2 |
