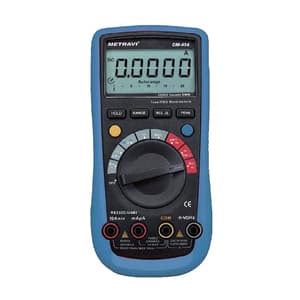

Metravi 22000 Counts / 1000V Digital TRMS Multimeter, DM-454

22000 Counts LCD, Data Hold, T-RMS, Double Moulded Case, AC/DC Voltage, AC/DC Current, Resistance, Frequency, Capacitance, Duty Cycle, Diode and Continuity Test. Digital Multimter Model DM-454 (True RMS) is an auto ranging multimeter.

The enclosure Structure design adopted advance “co-injection” technique in order to provide sufficient insulation. This Meter can measure AC/DC Voltage and Current, Resistance, Diode, Continuity Buzzer, Capacitance, Frequency, In addition to the conventional measuring functions, there is data hold, relative mode, peak measurement, low battery display,

Features:

• T-RMS Measurement
• Data Hold to Freeze the displayed data
• Peak Hold
• Relative Measurement
• Overload Indication
• Auto Ranging
• Auto Power Off
• Low Battery Indication
• Double Moulded Body
• Display: 22000 Counts LCD, with analog bar graph
• DC Voltage: 0 – 220mV/2.2V/22V/220V/1000V
• Accuracy: ± (0.1%+2)
• AC Voltage: 0 – 220mV/2.2V/22V/220V/750V T-RMS
• Accuracy: ± (0.8%+10)
• DC Current: 0 – 220uA/2200uA/22mA/220mA/10A
• Accuracy: ± (0.5%+10)
• AC Current: 0 – 220uA/2200mA/22mA/220mA/10A T-RMS
• Accuracy: ± (0.8%+10)
• Resistance: 0 – 220Ω/2.KΩ/202Ω/202KΩ/2.2MΩ/22MΩ/220MΩ
• Accuracy: ±(0.5%+10)
• Capacitance: 0- 22nF/220nF/2.2uF/22uF/220uF/2.2mF/22mF/220mF
• Accuracy: ±(3.0%+5)
• Frequency: 10 ~ 220MHz
• Accuracy: ± (0.01%+5)
• Duty Cycle: 0 – 99.9%
• Accuracy: ± 0.1%
• Diode Test, Audible Continuity Test
