Metravi 2000V AC/DC Digital TRMS Multimeter, Solar-1B
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Display: LCD, Backlit
- Sampling Rate: 3 times per second
- Protection: Overload
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,250 (Incl. of all taxes)
₹2,754 + ₹496 GST (18%)
MRP was MRP ₹4,050
Save 32%
5 Business Days
1
90303100
Download Metravi CatalogueNot available
Highlights

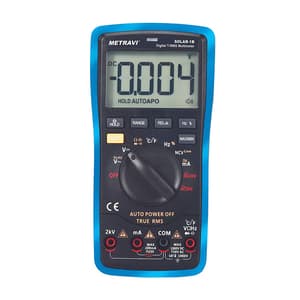

The Metravi Solar-1B Digital T-RMS Multimeter is a high-performance, battery driven, and highly reliable instrument. It adopts a large, backlit LCD display with clear readings and an overload protection function. It can measure 2000V AC/ DC Voltage, DC Voltage, True RMS AC Voltage and Average values, DC Current, AC Current, Resistance, Capacitance, Frequency, Diode and Temperature. It features intelligent voice alarm values and high voltage diode output measurement.
Compared to traditional diode measurement, the Metravi Solar- 1B provides a voltage of 1V higher, making it more convenient for maintenance personnel to measure various LEDs. The entire device is equipped with dual integral A/D transformed into the core and it is a high-performance tool and instrument. It’s an ideal tool for laboratories, factories and radio enthusiasts.
Features:
- TRMS Measurements

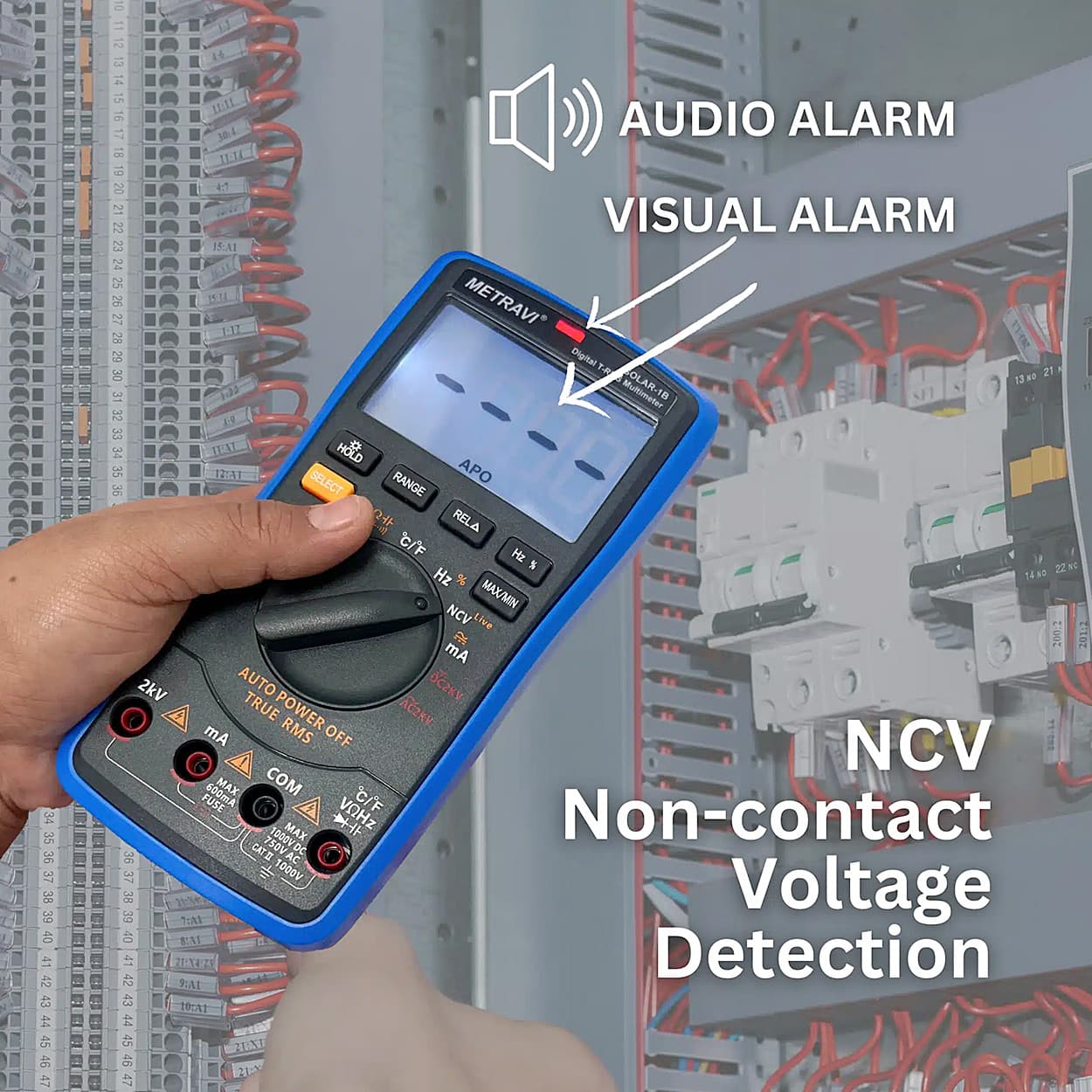

- Non-contact Voltage Detection
- Over Range display
- Low Voltage Display
- Auto Power Off
- Live Wire detection
- Diode Test
- Overload Protection
Specification:
| DC Voltage Range | 1000V, 600V, 60V, 6V |
| DC Voltage Resolution | 1mV, 100mV, 10mV, 1V |
| AC Current Range | 600mA, 60mA |
| AC Current Resolution | 100mA, 10mA |
| AC Voltage Range | 2000V, 200V, 60V, 6V, 750V |
| AC Voltage Resolution | 1mV, 100mV, 10mV, 1V |
| Capacitance Range | 600nF, 600µF, 60mF, 60nF, 60µF, 6mF, 6µF |
| Capacitance Resolution | 100nF, 100pF, 10mF, 10nF, 10pF, 1mF, 1nF |
| DC Current Range | 600mA, 60mA |
| DC Current Resolution | 100µA, 10µA |
| Resistance Range | 600kΩ, 600Ω, 60kΩ, 60MΩ, 6kΩ, 6MΩ |
| Resistance Resolution | 0.1Ω, 1Ω, 100Ω, 10kΩ, 10Ω, 1KΩ |
| Temperature Range | 0 ~ 1832°F, 20 ~ 1000°C |
| Temperature Resolution | 1°C, 1°F |
| Frequency Range | 100Hz, 100kHz, 10Hz, 10kHz, 10MHz, 1kHz, 1MHz |
| Frequency Resolution | 0.01Hz, 0.1Hz, 1Hz, 100Hz, 10Hz, 10kHz, 1kHz |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | LCD, Backlit |
|---|---|
| Measurement Method | Double integral A/D conversion |
| Sampling Rate | 3 times per second |
| Power Supply | Battery |
| Battery Capacity | 1.5V |
| Protection | Overload |
