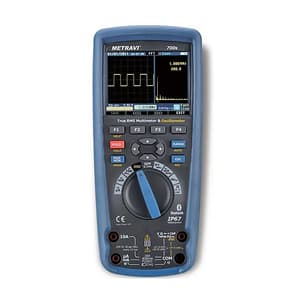

Metravi 10MHz / 50000 Counts Digital Multimeter With Built In Oscillometer, 700S
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Power Source: Battery Operated
- Battery Type: Li-Ion Rechargeable
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹55,033 (Incl. of all taxes)
₹46,638 + ₹8,395 GST (18%)
MRP was MRP ₹68,585
Save 32%
Out of Stock
5 Business Days
1
90302000
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
The Metravi 700S is 10MHz Hand Held Digital Storage Oscilloscope with 50,000 Counts multimeter
Features:
- Professional True RMS Industrial Digital Multimeter with oscilloscope functions
- TFT color LCD display, providing fast A/D converting sampling time
- High accuracy, built-in data logging and Trend Capture features.
- It can trace any interrupted problems of the equipment and watch on without person
- It is easy to fi nd and solve the problems of the production equipment
- Providing Bluetooth technology and memorizing the data
- It is much more safe measurements with double molded plastic housing design and IP67 waterproof function.
- Large 50,000 count 320 x 240 TFT color LCD display
- 10MHz/50MS/s bandwidth/Real time sample rate
- Logging function with TrendCapture for easy review of logged data
- Bluetooth PC interface for easy data transfer & accuracy calibration
- 100kHz/100kHz bandwidth (voltage/current)
- AC, AC+DC true-RMS measurements
- Records events and trends
- Saves measurements
- A/D convert fast sampling time
- Peak capture (records transients as fast as 250μs)
- Min/Max/Average with Time stamp (records signal fl uctuations)
- Motor winding and low ohm (50Ω) measurement range
- Low pass filter
- IP Rating 67
- Compatible with AC/DC clamp-on adaptor with Bluetooth at mV range
- Real Time Measurement: Voltage peak value, Waveform frequency
- Cursor Measurement: Voltage and Time
- Frequency Spectrum: Frequency and Relative Amplitude
- Screen Refresh Rate: Effectively reduce visual fatigue, Selectable refresh rate
- DC Voltage Range: 0V to 1000V
- DC Voltage Accuracy: ±0.025%
- DC Voltage Resolution: 1μV
- AC Voltage Range: 0V to 1000V
- AC Voltage Resolution: 1μV
- AC Voltage Accuracy: ±0.4%
- DC Current Range: 0 to 10A
- DC Current Resolution: 0.01μA
- DC Current Accuracy: ±0.15%
- AC Current Range: 0 to 10A
- AC Current Resolution: 0.01μA
- AC Current Accuracy: ±0.07%
- Temperature Range: -200°C to 1350°C
- Temperature Resolution: 0.1°C
- Temperature Accuracy: ±1.0%
- Resistance Range: 0 to 50MΩ
- Resistance Resolution: 0.001Ω
- Resistance Accuracy: ±0.05%
- Capacitance Range: 0 to 10mF
- Capacitance Resolution: 0.001nF
- Capacitance Accuracy: ±1%
- Frequency Range: 0 to 50MHz
- Frequency Resolution: 0.01Hz
- Frequency Accuracy: ±0.005%
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Display | TFT LCD display |
|---|---|
| Colour | Blue-Black |
| Data Logging | 10000 Readings with Trend Capture |
| Dust & Water Proof | IP67 |
| PC Interface | Bluetooth |
| Bandwidth | 100kHz |
| Sampling Time | 20 times/sec |
| Real Time Sample Rate | 500S/s to 50MS/s |
| Rise Time | 17.5ns |
| Record Length | 3000 Points |
| Vertical Sensitivity | 50mV/div to 100V/div |
| Vertical Resolution | 8 bits |
| Time-Based Range | 250ns to 50ms/div |
| Trigger Mode | Internal Falling Edge, Internal Rising Edge, No Trigger |
| Trigger Source | Input Signal |
| Trigger Level | >0.5V |
| Input Impedance | 1MO/15pF |
| Input Voltage | 600V(Peak) |
| Data Record | 10000 digits |
| Power Source | Battery Operated |
| Battery Type | Li-Ion Rechargeable |
| Certifications | CAT III 1000V, CAT IV 600V, EN-61010-1 |
