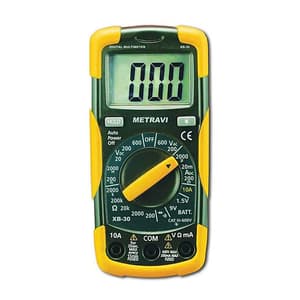

Metravi 3-1/2 Digits / 600V Digital Multimeter, XB-30

Shop all Metravi

SKU: ME.EL.MU.00060

Model: XB30

Roll over the image to zoom in


Key Features

  • Product Type: Multimeter
  • Weight: 255 g
  • DC Voltage Range: 0–200mV/2V/20V/200V/600V
  • AC Voltage Range: 0-200V/600V
  • DC Current Range: 0-2000μA/20mA/200mA/10A
See all product information

ToolBuy Benefits

₹1,788 (Incl. of all taxes)

₹1,515 + ₹273 GST (18%)

MRP was MRP ₹2,228

Save 32%



5 Business Days

1

90308990

Download Product LeafletNot available
Download Metravi CatalogueNot available

Highlights

3-1/2 Digits, Backlit LCD, Fully Protected, Data Hold, AC Voltage, DC Voltage, DC Current, Resistance, Diode & Continuity Test.

Safety:

For indoor use and in accordance with Overvoltage Category II, Pollution Degree 2. Category II includes local level, appliance, portable equipment, etc., with transient overvoltages less than Overvoltage Category III.


Features:

  • Display: 1999 (3 ½) Count , 15mm Backlit LCD
  • Auto Power Off
  • Overload Indication
  • Low Battery Indication
  • Over Load Protection of 500V DC/AC RMS
  • Battery Test: 9V/1.5V
  • With Diode Test, Continuity  Test and Data Hold.
  • Operating Temperature 32 deg * F to mathcal 122 deg * F (0 deg * Cto * 50 deg * C)
  • Storage Temperature - 4 deg * F to 140 deg * F ( - 20 deg * C to 60 deg * C )
  • Relative Humidity <70% operating, <80% storage
  • Operating Altitude 7000ft. (2000) meters maximum.
  • Confirms to CE, CAT-III 600V, IEC 1010-1

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Metravi 3-1/2 Digits / 600V Digital Multimeter, XB-30
DisplayBacklit LCD
ColourYellow-Black
PolarityAutomatic
Sampling Time2 times/sec

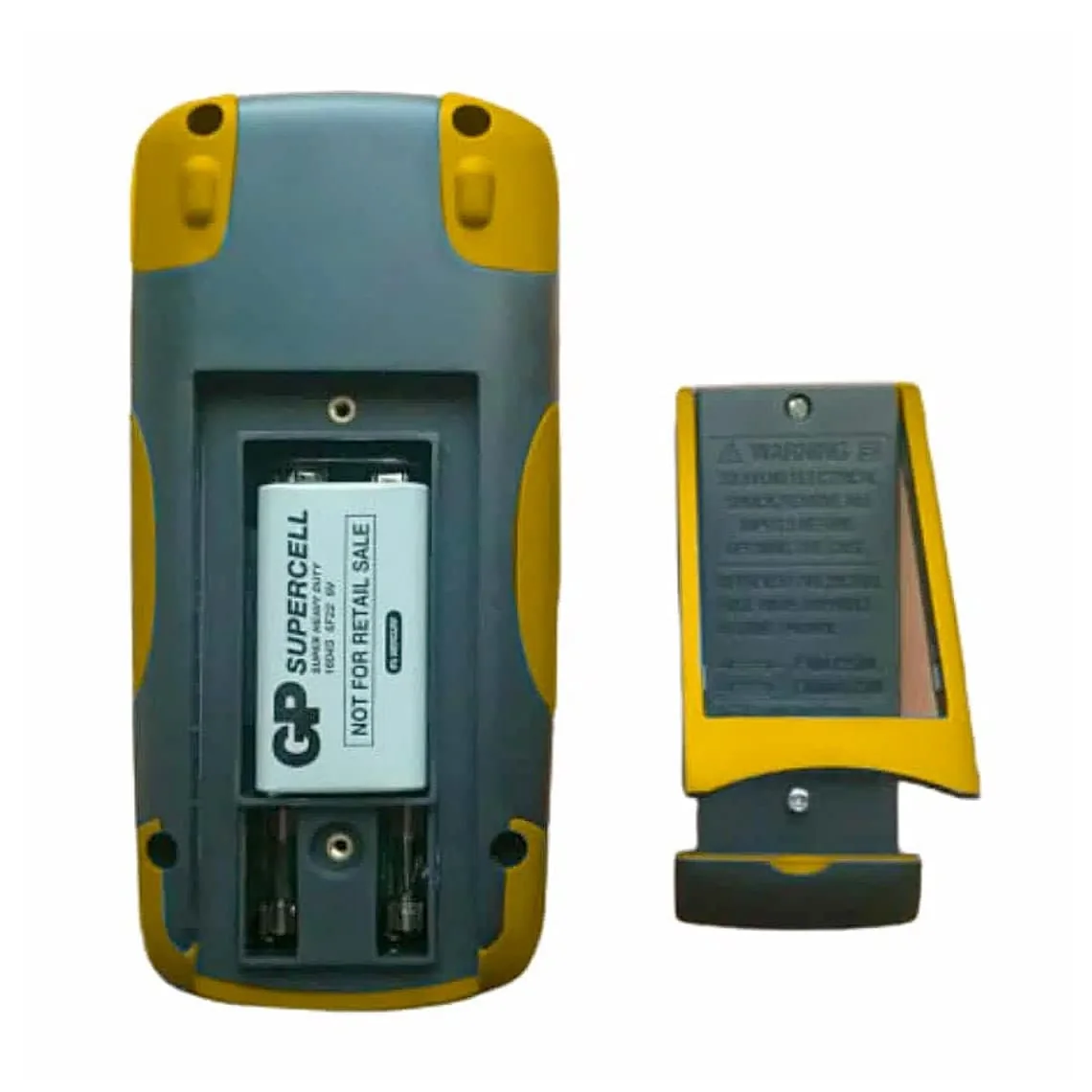

Power SourceBattery Operated
Battery TypeAlkaline
Battery Size9V
No of Batteries1
DC Voltage Range0–200mV/2V/20V/200V/600V
DC Voltage Accuracy±0.5%
AC Voltage Range0-200V/600V
AC Voltage Accuracy±1.2%
DC Current Range0-2000μA/20mA/200mA/10A
DC Current Accuracy±1%
Resistance Range0-200/2k/20k/200k/2M Ohms
Resistance Accuracy±1.0%
DC Voltage Resolution0.1mV to 1V
AC Voltage Resolution0.1V to 1V
DC Current Resolution1μA to 10mA
Resistance Resolution0.1 to 1k Ohms
CertificationsCAT-III 600V, CE, IEC 1010-1
