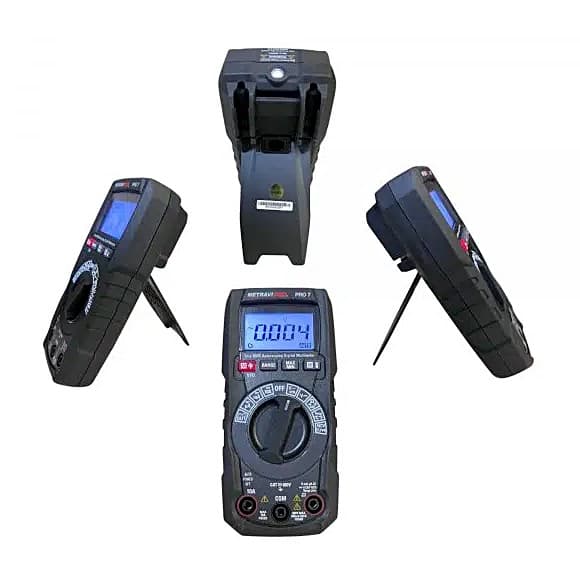

Metravi 4000 Counts / 600 V AC / DC Non Contact Digital Multimeter, PRO-7

The Metravi Pro 7 is a first of its kind multimeter with backlit ranges and range selection switch, which makes operations in dark environments easy with the backlit display, backlit switch as well as the backlit ranges clearly visible. Measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Diode and Continuity Test. Can measure AC Voltage of VFD (Variable Frequency Drive).

Features Non-contact Voltage Detection, Live Line Test, Square Wave Output, Data Hold, MAX/MIN record functions. Auto Power Off. Heavy-duty, rugged design with double-injection moulding. Built-in Flashlight to access dark areas. Confirms to CATIII 600V.

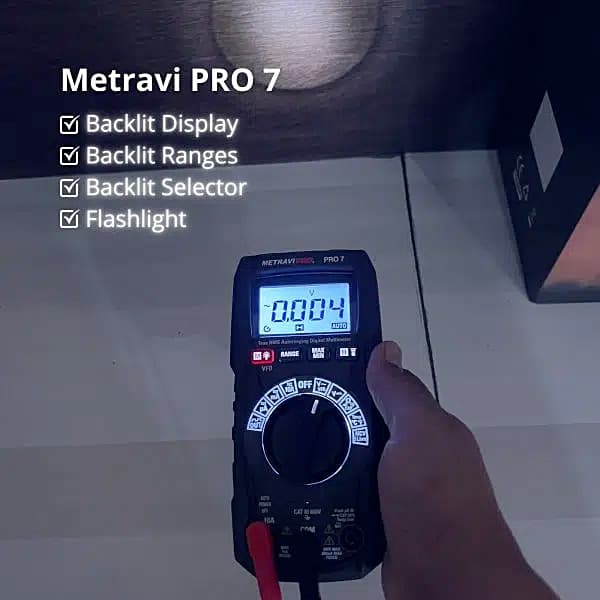

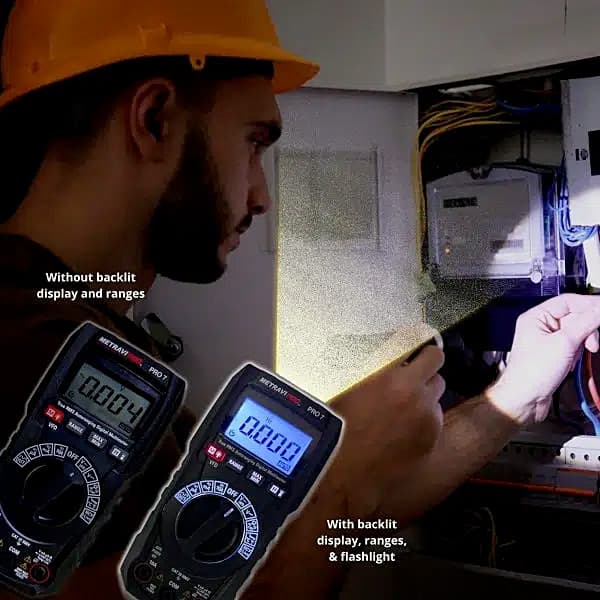

• First of its kind multimeter with backlit ranges and range selection switch. Makes operations in dark environments easy with the backlit display, backlit switch as well as the backlit ranges clearly visible

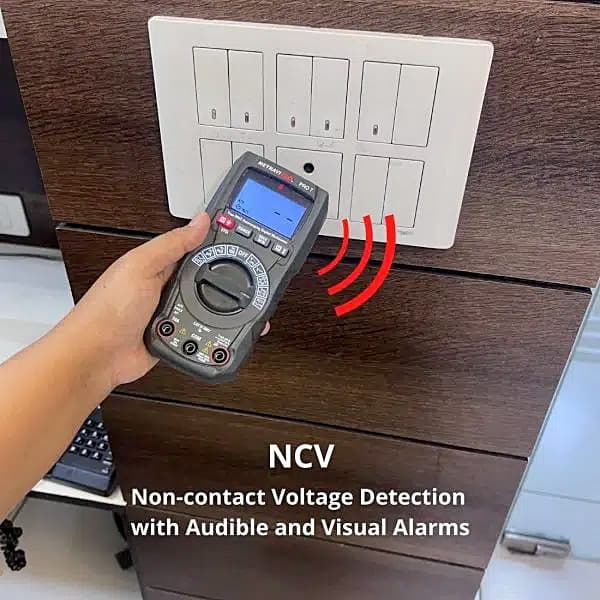

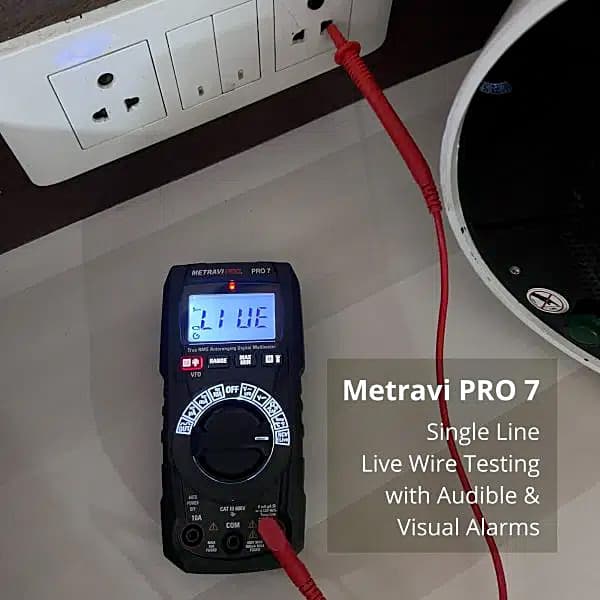

• Measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Diode and Continuity Test and features Non-contact Voltage Detection, Live Line test and Square Wave Output
• Heavy-duty, rugged design with double-injection moulding.

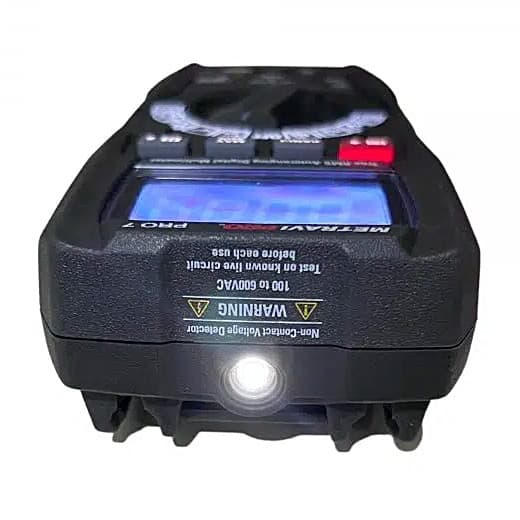

• Built-in Flashlight to access dark areas.
• Confirms to CATIII 600V.
• Data Hold, MAX/MIN record functions.
• Auto Power Off

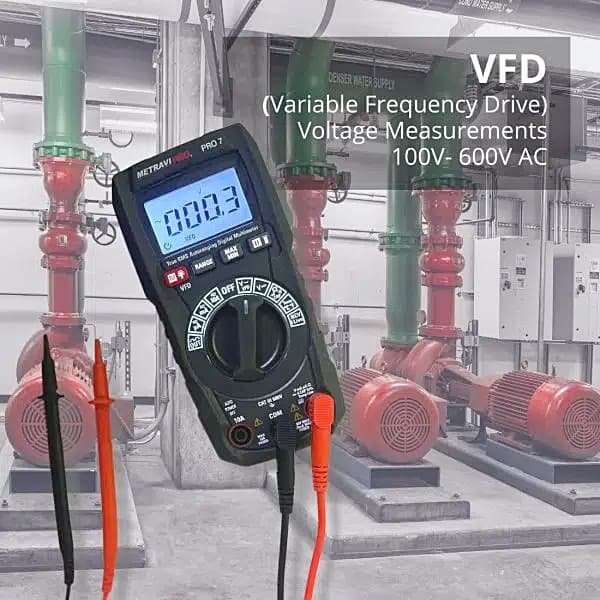

• Can measure AC Voltage of VFD (Variable Frequency Drive)

Features:

• Enclosure : Double-moulded
• Shock (Drop Test) : From 1 meter
• Input Impedance : >10MOhm VDC & >10MOhm VAC
• Response : TRMS
• ACV Bandwidth : 50/60Hz (All wave); 45Hz to 1000Hz (Sine wave)
• Crest Factor : 3 at full scale up to 300V, decreasing linearly to ≤1.5 at 600V
• Display : 4000 Counts Positive Display
• Over Range Indication : “OL” is displayed
• Auto Power Off : 15 minutes (approximately) with disabling feature
• Polarity : Automatic (No indication for positive): Minus (-) sign for negative
• Measurement Rate : 3 times per second, nominal
• Low Battery Indication : Symbol is displayed if battery voltage drops below operating voltage
• Battery : 1.5V AAA x 2 battery
• Fuses : mA/µA ranges: 0.5A 600V ceramic fast blow A range; 10A/600V ceramic fast blow
• Operating Temperature : 5 to 40°C (41 to 104°F)
• Storage Temperature : -20 to 60°C (-4 to 140°F)
• Operating Humidity : Max 80% up to 31°C (87°F) decreasing linearly to 50% at 40°C (104°F)
• Storage Humidity : <80%
• Operating Altitude : 7000 ft. (2000 meters) maximum
• Input Impedance : >10MW VDC & >10MW VAC
• Ceramic Fast Blow Fuses : mA/μA ranges
• Backlit Ranges and Switch
• Diode & Continuity Test
• Duty Frequency Out Square Wave
• Output Frequency (Manual-Ranging)
• This meter is intended for origin of installation use and protected by double insulation per EN61010-1:2010 and EN61010-031:2015, EN61010-2-033:2012 to CATIII 600V; Pollution Degree 2
• Accuracy is stated at 18 to 28°C (65 to 83°F) and less than 75% RH
• Warranty is one year against manufacturing defects
