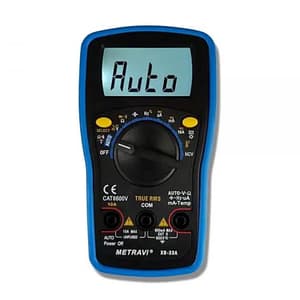

Metravi 5999 Counts / 600 V AC / DC Non Contact Voltage Detection Digital Multimeter, XB-33A
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 200 g
- DC Voltage Range: 0-600mV/6V/60V/600V
- AC Voltage Range: 0-6V/60V/600V
- Temperature Range: -20°C to 1000°C
- Duty Cycle Range: 1% to 99%
- Sampling Time: 3 times/sec
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,005 (Incl. of all taxes)
₹1,699 + ₹306 GST (18%)
MRP was MRP ₹2,498
Save 32%
5 Business Days
1
90303100
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights

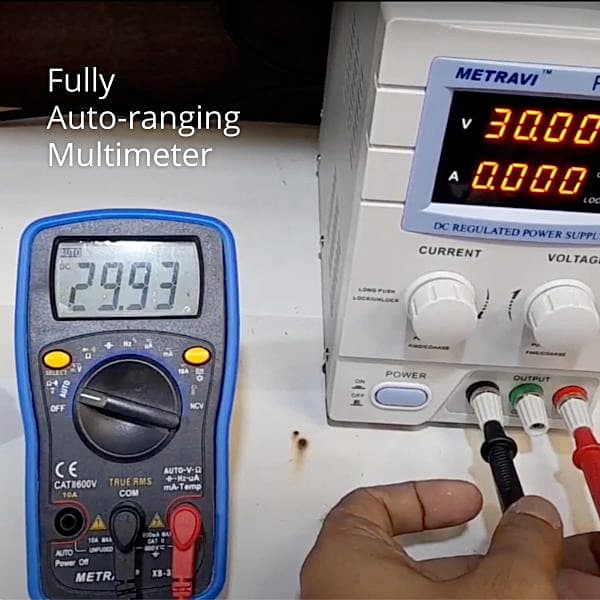

The Metravi XB-33A is a 6000 Counts, Auto-ranging TRMS Digital Multimeter, with a backlit LCD display. In case if you don’t know whether two points are short, or have voltage or linear resistance, no need to worry. Just connect this multimeter and the instrument will detect automatically.
This auto-ranging digital multimeter can measure AC TRMS Voltage and Current, DC Current / Voltage, Frequency, Resistance, Capacitance & Temperature. It also has Diode and Continuity Test and Non-contact Voltage Detection, along with overload protection to against incorrect connections.
Features:
- Accuracy : Stated at 23°C ±5°C (73°F ±10°F) and less than 70% RH
- Diode Test : Test current of 1mA maximum, open circuit voltage 3.2V DC typical
- Continuity Check : Audible signal will sound if the resistance is less than approximately <40±5 Ohm
- Temperature Sensor : Requires type K thermocouple
- Input Impedance : 10MOhm (V AC/DC)
- Display : 5999 counts backlit LCD
- Over-range : “OL” is displayed
- Polarity : Automatic (no indication for positive polarity): Minus(-) sign for negative polarity.
- Measurement Rate : 3 times per second, nominal
- Low Battery : Symbol is displayed if battery voltage drops below operating voltage
- Batteries : Requires (2) AAA batteries
- Fuses : mA range; 630mA/250V fast blow fuse, 10A range no fuse
- Operating Temperature : 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Relative Humidity : Maximum relative humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C
- Data Hold : To freeze the displayed data
- Colour : Blue-Black
- Polarity : Automatic
- Over-range Alert

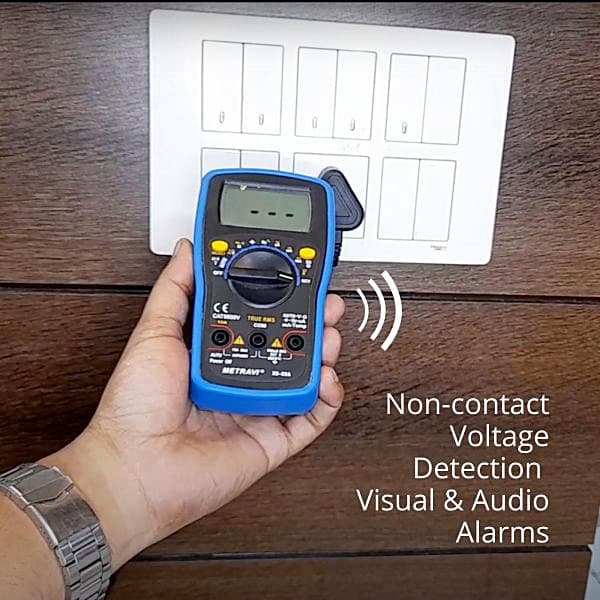

- Non-contact Voltage Detection (NCV)
- Input Impedance: 10MΩ (V AC/DC)
- Warranty is one year against manufacturing defects
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | Backlit LCD |
|---|---|
| Power Source | Battery Operated |
| Battery Type / Size | Alkaline / AAA |
| No. of Batteries | 2 |
| Colour | Blue-Black |
| DC Voltage Range | 0-600mV/6V/60V/600V |
| AC Voltage Range | 0-6V/60V/600V |
| DC Current Range | 0-600uA/6000uA/60mA/600mA/6A/10A |
| AC Current Range | 0-600uA/6000uA/60mA/600mA/6A/10A |
| Resistance Range | 0-600O/6kO/60kO/600kO/6MO/60MO |
| Capacitance Range | 0-9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF |
| Temperature Range | -20°C to 1000°C |
| Frequency Range | 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz |
| DC Voltage Accuracy | ±0.5% |
| AC Voltage Accuracy | ±0.8% |
| DC Current Accuracy | ±1% |
| AC Current Accuracy | ±1.2% |
| Resistance Accuracy | ±1.2% |
| Capacitance Accuracy | ±3.0% |
| Temperature Accuracy | ±1.0% |
| Frequency Accuracy | ±0.3% |
| Duty Cycle Range | 1% to 99% |
| Sampling Time | 3 times/sec |
| Length x Width x Height (mm) | 141 x 77 x 35 |
| Certifications | CAT II 600V |
