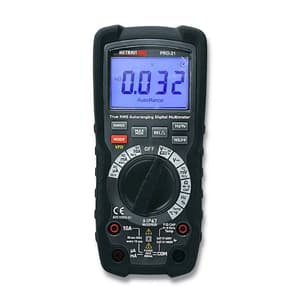

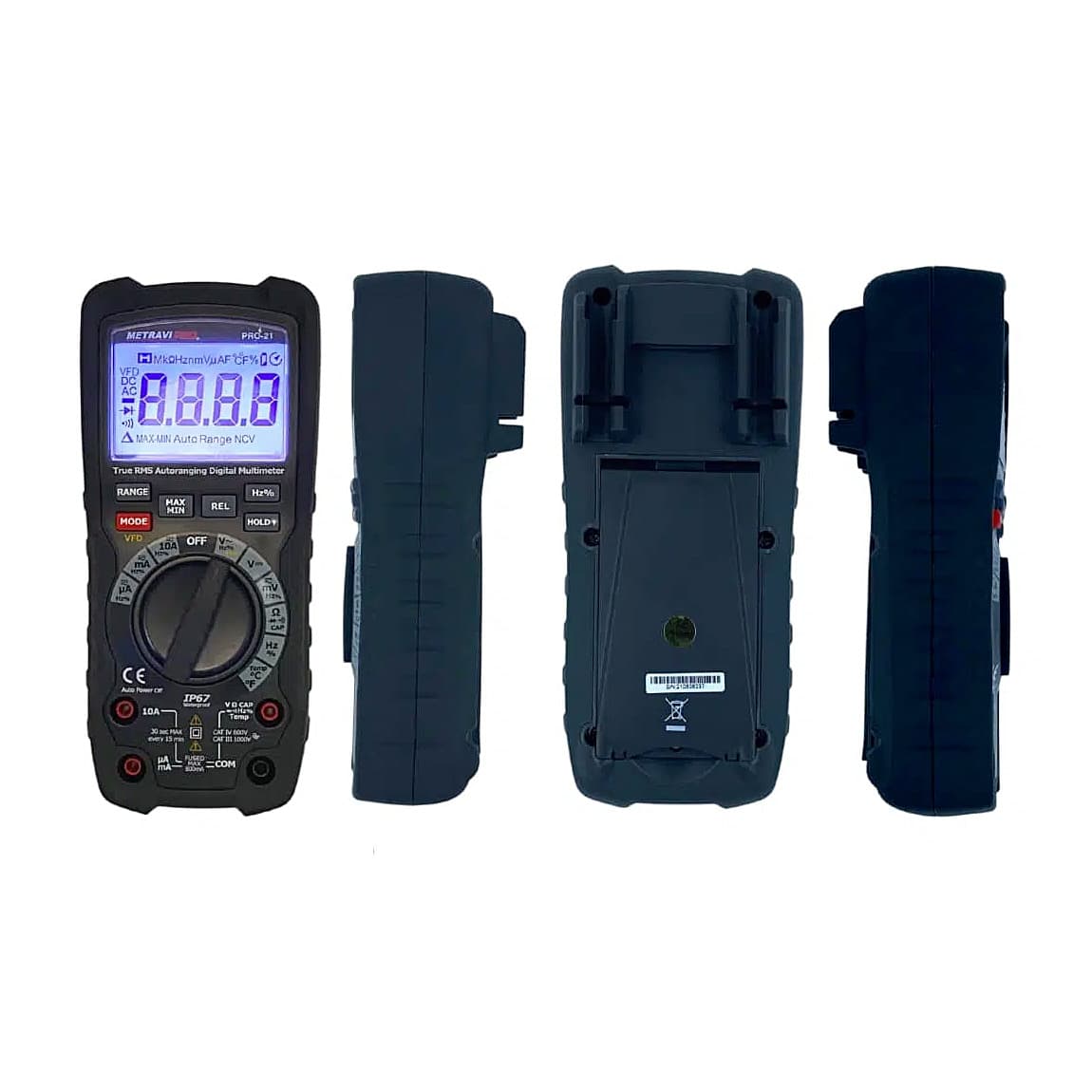

Metravi 6000 Counts / 1000 V AC / DC Digital TRMS Multimeter with VFD, PRO 21
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Colour: Black
- Power Source: Battery Operated
- Battery Type: Alkaline
- Polarity: Automatic
- Sampling Time: 2 times/sec
- DC Voltage Resolution: 0.01mV to 1V
- AC Voltage Resolution: 0.01mV to 1V
- Operating Temperature: 5 to 40°C (41 to 104°F)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹6,608 (Incl. of all taxes)
₹5,600 + ₹1,008 GST (18%)
MRP was MRP ₹8,235
Save 32%
5 Business Days
1
90303100
Download Metravi CatalogueNot available
Highlights

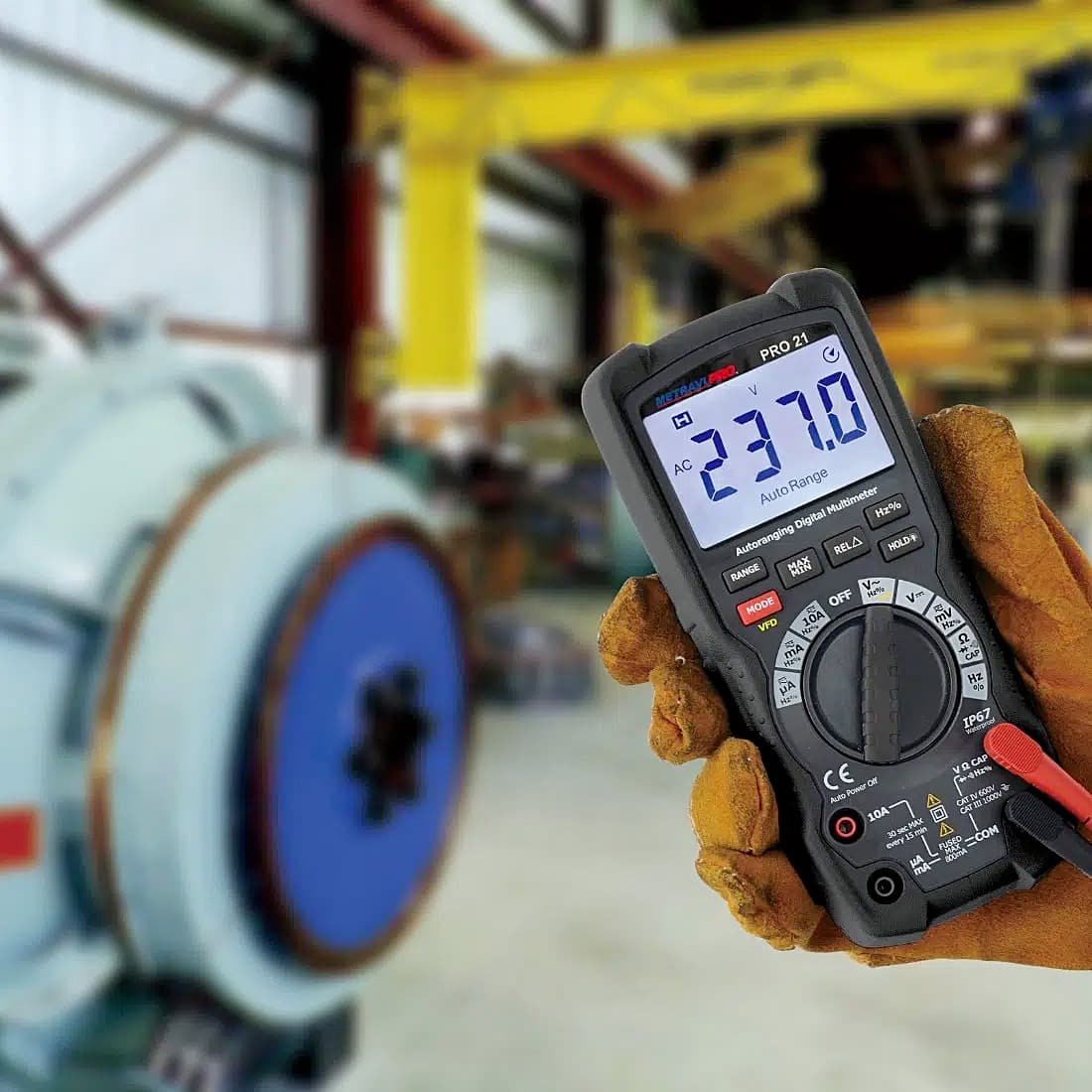

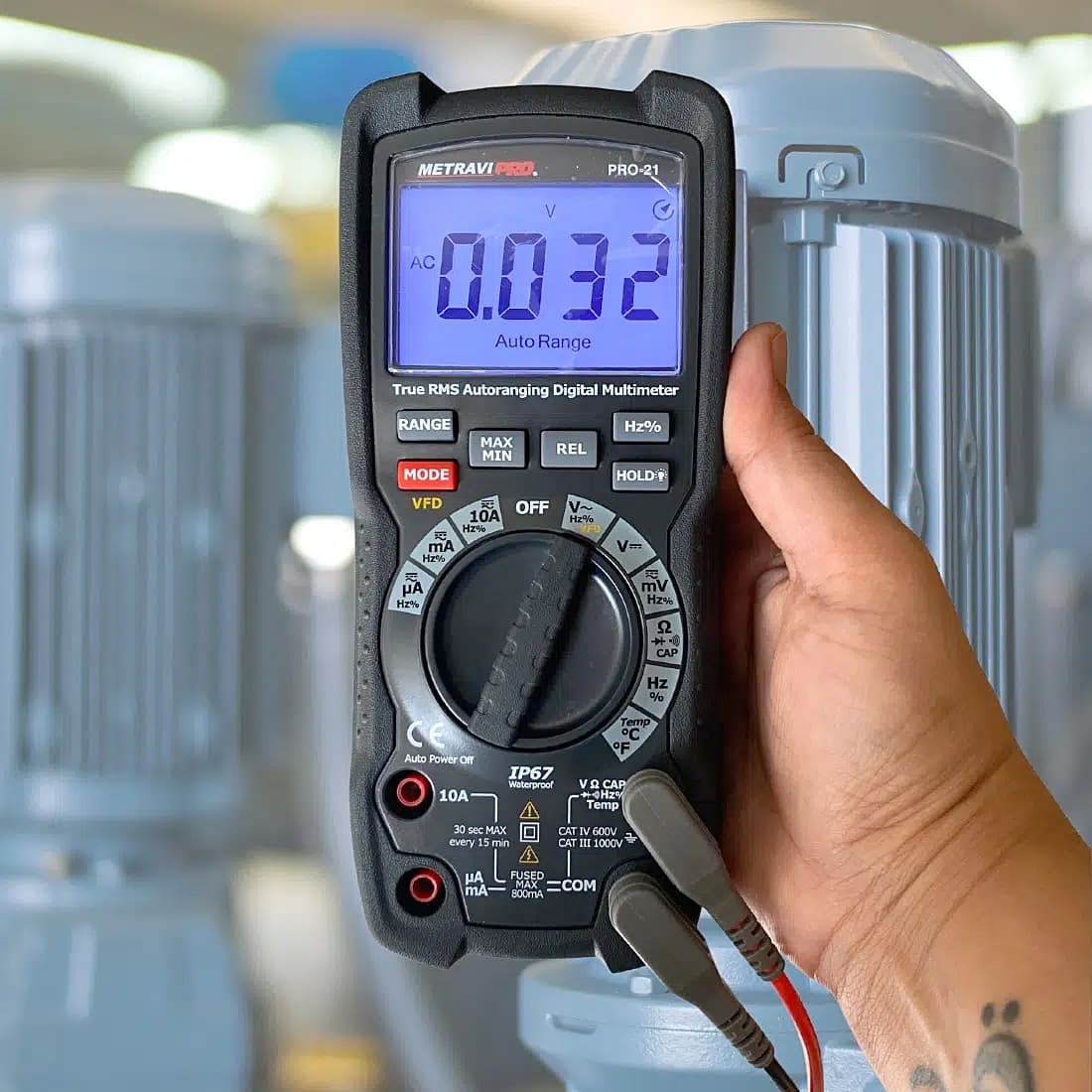

The Metravi PRO 21 is a dynamic hand-held device, a multimeter which allows users to save time and tool belt space. Heavy Duty Industrial-grade Digital Multimeter with VFD Measurement. IP67 dust and water proof, as well as 2 metres drop/shock-proof. With 6000 counts, the multimeter features a backlit LCD display with data review and measurement saving functions.
6000 counts backlit LCD display, TRMS, Auto-ranging Professional Multimeter for measuring AC/DC Current, AC/DC Voltage, Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Continuity and Diode testing. AC Measurement Bandwidth 1kHz. Features Relative Measurement, MAX MIN records, Auto Power-off, Low Battery indication, fast-blow Ceramic Fuse. CE Certified, CAT-III 1000V, CAT-IV 600V.
Features:
- Heavy Duty Industrial T-RMS Multimeter
- VFD (Variable Frequency Drive) Measurement up to 700V AC
- AC Measurement Bandwidth 1kHz
- 6000 counts extra-large, backlit, LCD display
- T-RMS Auto Ranging
- MAX/MIN records
- Relative measurement
- Double-injection moulding

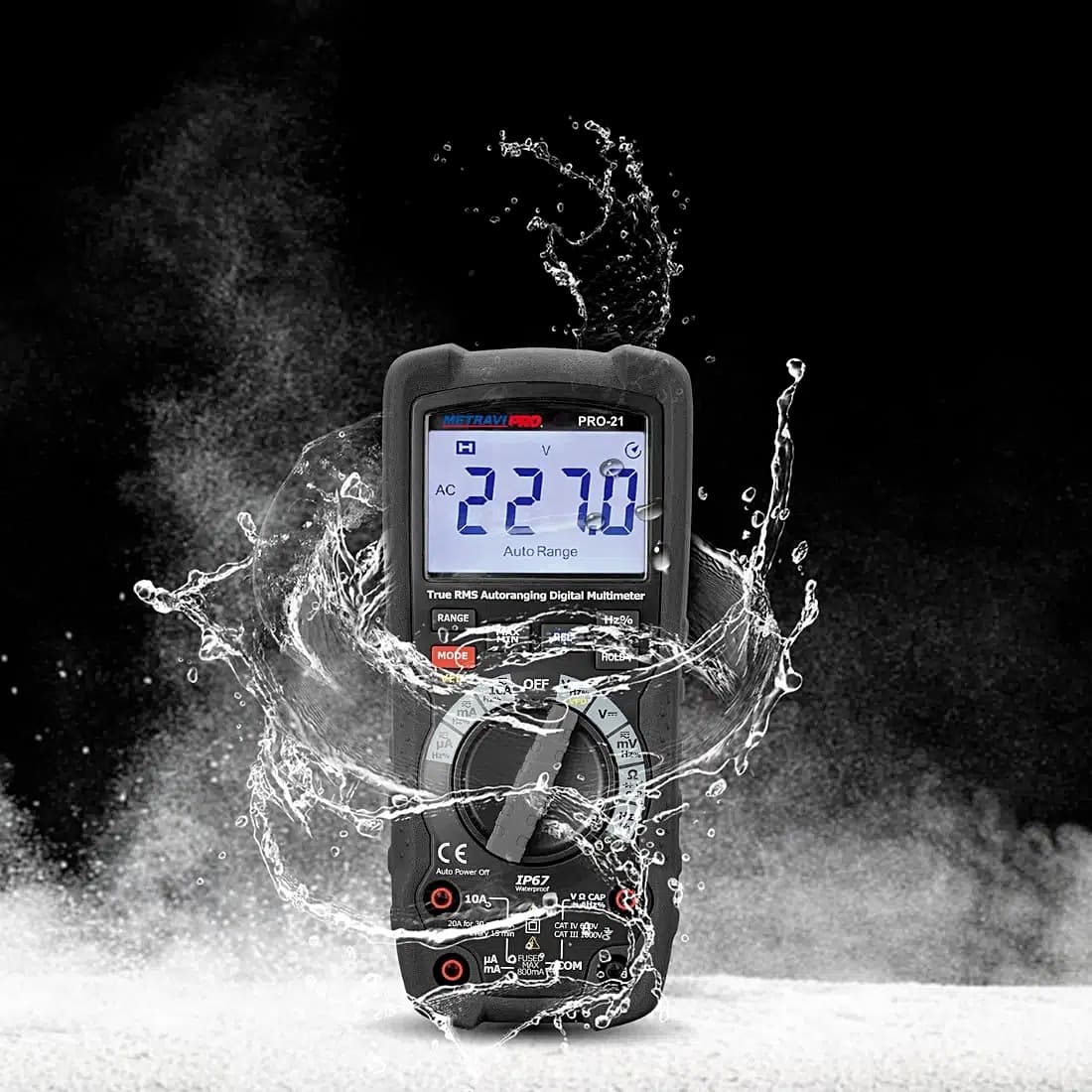

- IP67 waterproof, dust-proof
- 2 metres shock-proof
- Fast-blow Ceramic Fuse
- Auto Power-off
- Low battery indication
- Auto Ranging
- Overload Indication

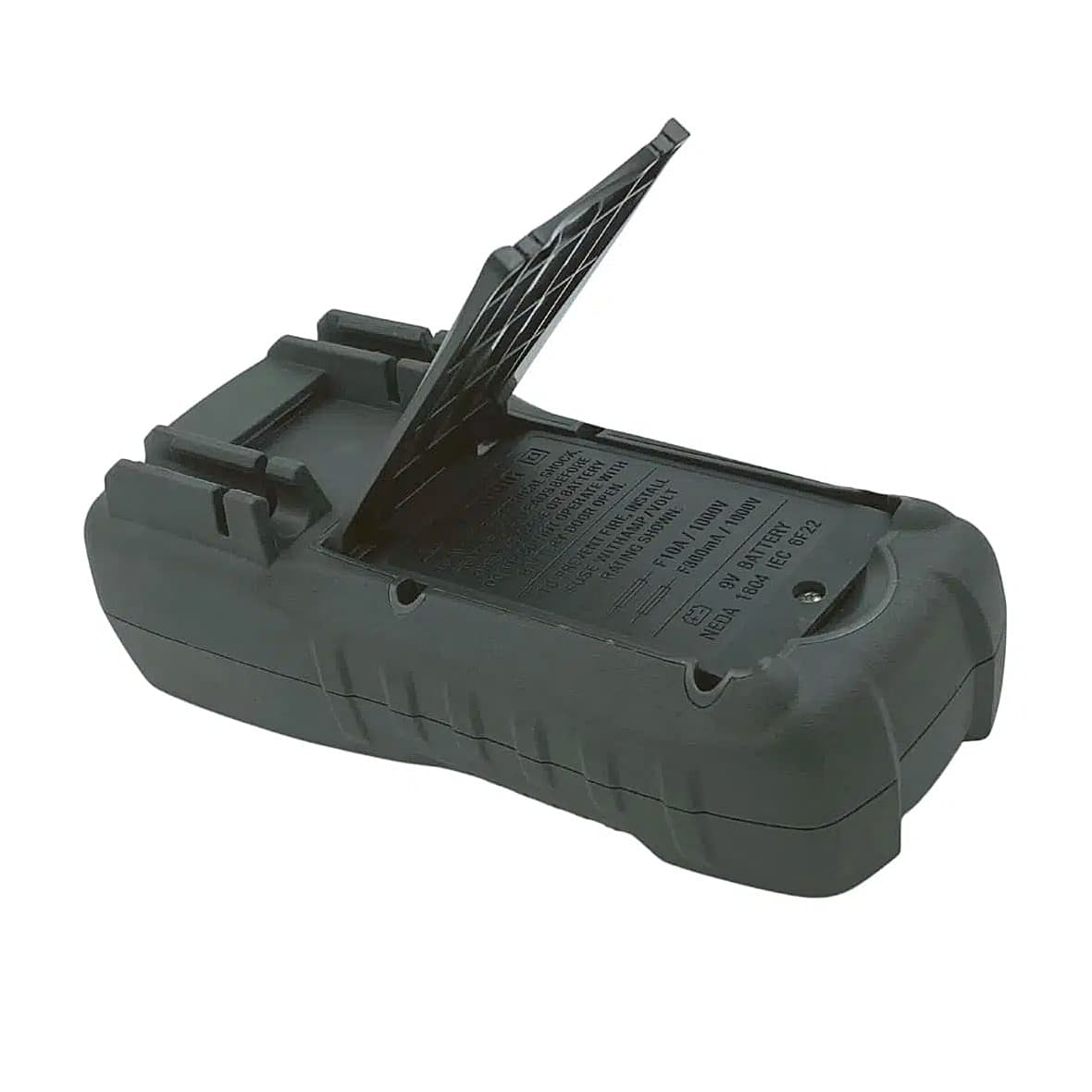

- 9V Battery-operated
- UL listed
- CE Certified, CAT-III 1000V, CAT-IV 600V
- Confirms to UL-61010-1 / CSA 61010-1 / EN-61010-1 / IEC-61010-1
- DC Voltage: 0-60m / 600m / 6 / 60 / 600 /1000V
- Accuracy: ±0.9%
- AC Voltage: 0-60m / 600m / 6 / 60 / 600 /1000V T-RMS
- Accuracy: ±0.9%
- VFD: 50.0 – 700V
- DC Current : 600u / 6000u / 60m / 600m / 6 / 10A
- Accuracy: ±1%
- AC Current : 600u / 6000u / 60m / 600m / 6 / 10A T-RMS
- Accuracy: ±1.5%
- Resistance: 0-600 / 6k / 60k / 600k / 6M / 60MΩ
- Accuracy: ±0.8%
- Capacitance: 0-99.99n / 999.9n / 9.999u / 99.99u / 999.9u / 9.999m / 99.99mF
- Accuracy: ±4%
- Frequency: 0-9.999Hz / 99.99Hz / 999.9Hz / 9.999k / 99.99k / 999.9k / 9.999MHz
- Accuracy: ±0.1%
- Duty Cycle: 0.1 to 99.9%

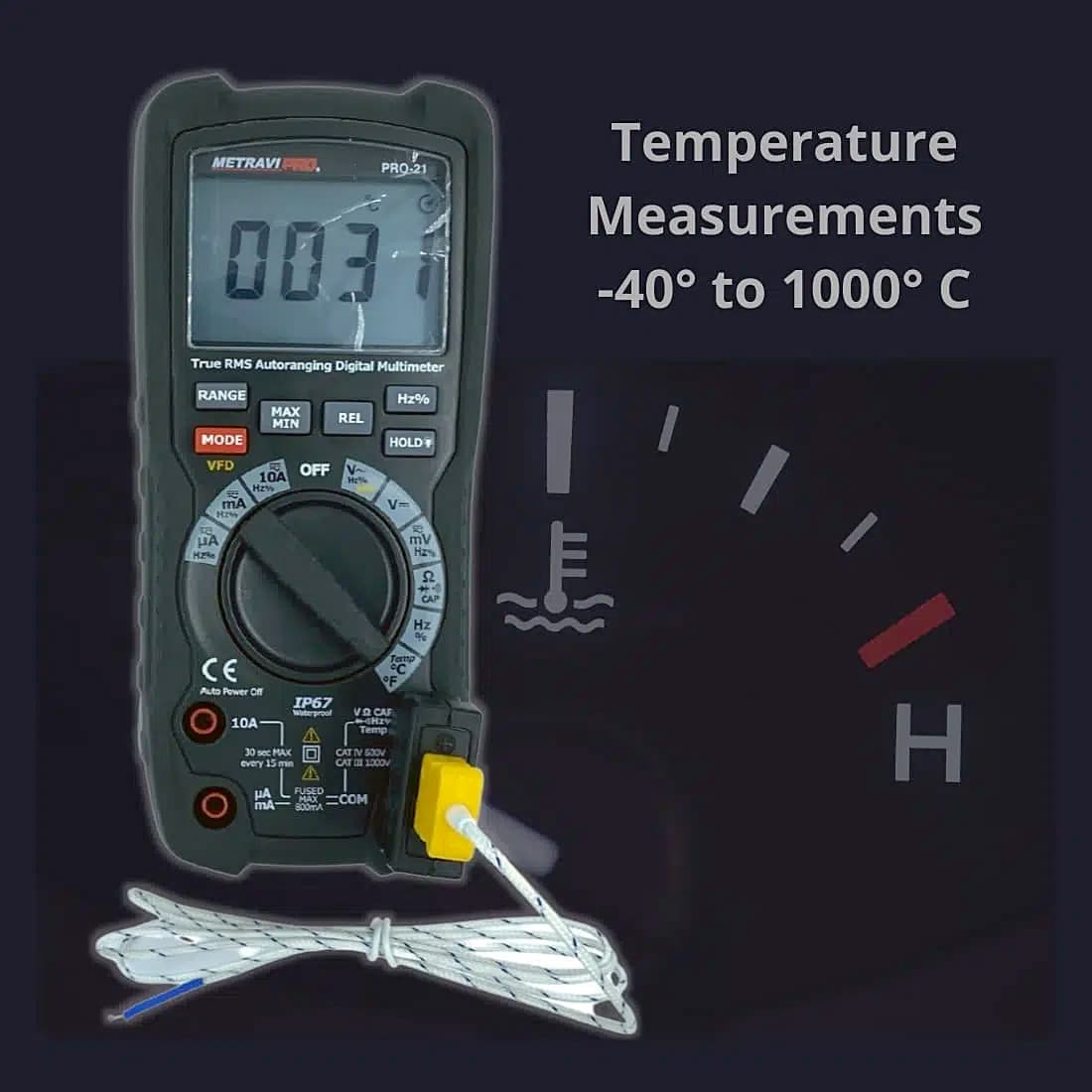

- Temperature: -40° to 1000°C
- Accuracy: ±3%
- Input Impedance : > 10MW VDC & > 10MW VAC.
- ACV Bandwidth : 45Hz to 1KHz.
- Crest Factor : ≤ 3 at full scale up to 500V, decreasing linearly to ≤ 1.5 at 1000V
- Fuses : mA, μA ranges; 0.8A/1000V ceramic fast blow A range; 10A/1000V ceramic fast blow
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Colour | Black |
|---|---|
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | 9V |
| No of Batteries | 1 |
| Polarity | Automatic |
| Sampling Time | 2 times/sec |
| DC Voltage Resolution | 0.01mV to 1V |
| AC Voltage Resolution | 0.01mV to 1V |
| DC Current Resolution | 0.1μA to 0.01A |
| AC Current Resolution | 0.1μA to 0.01A |
| Resistance Resolution | 0.1O to 0.01MO |
| Capacitance Resolution | 0.01nF to 0.01mF |
| Frequency Resolution | 0.001Hz to 0.001MHz |
| Temperature Resolution | 1°C |
| Diode Test | Test current of 0.9mA maximum, open circuit voltage approx 3.2V DC typical |
| Operating Temperature | 5 to 40°C (41 to 104°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Operating Humidity | Max 80% up to 31°C (87°F) decreasing linearly to 50% at 40°C (104°F) |
| Storage Humidity | <80% |
| Operating Altitude | 2000 meters (7000 ft) maximum |
