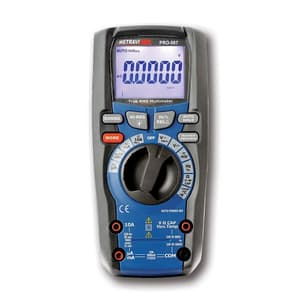

Metravi 6000 Counts / 1000 V AC / DC Digital TRMS Multimeter with VFD, PRO 587

The Metravi PRO 587 is a professional, True-RMS, Industrial Digital Multimeter with a 6000 counts LCD display, which can be turned into 60000 Counts with just the press of a button! It features a waterproof, rugged design for heavy-duty use. Proper use and care of this meter will provide many years of reliable service.

6,000 /60,000 Counts user selectable, Backlit LCD Display, Analogue Bargraph, T-RMS Multimeter, 1000V AC/DC Current, 10A AC/DC Current, 100kHz AC Response, Resistance, Capacitance, Electrical and Electronic Frequency, Temperature, Duty Cycle, Low Pass Filter, 4-20mA measurement, Continuity and Diode testing. Features Auto Power Off, Auto Hold, Min/Max, Peak Min/Max, Relative measurement. Double-moulded, waterproof, 2 meter drop tested, CAT III 1000V, CAT IV 600V, UL-61010-1, UL-61010-2-032, UL-61010-2-033. Comes with Fast Blow Ceramic Fuse with easy fuse access.

Features:

• CAT III 1000V, CAT IV 600V and UL Rated

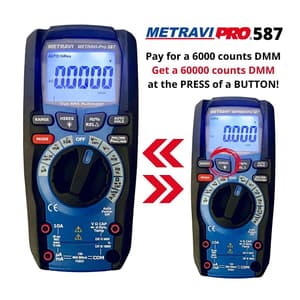

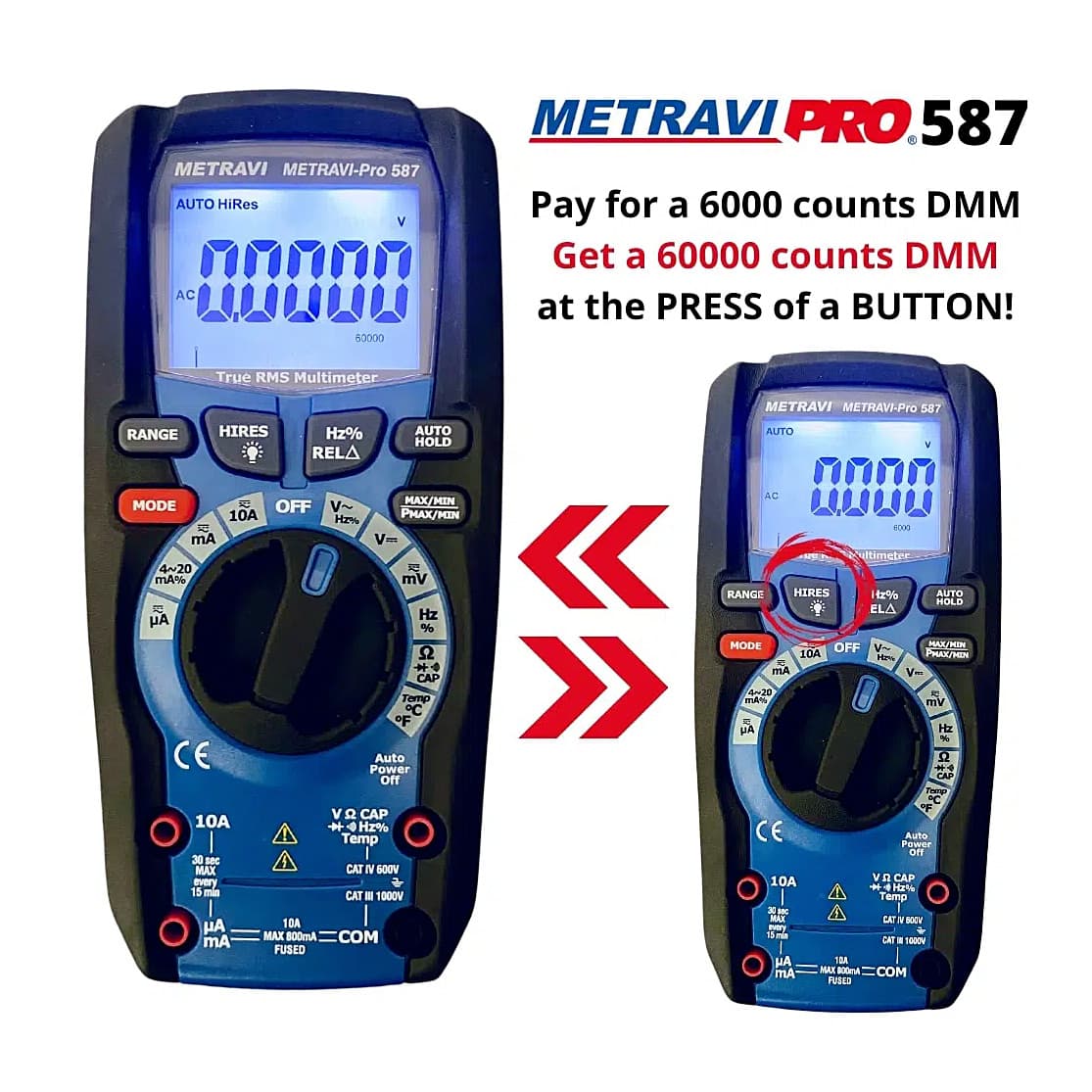

• 6000 / 60000 Count User Selectable
• Double-moulded, Waterproof and 2 Meter Drop-tested for rugged industrial use
• 100kHz AC Bandwidth for low mV at High Frequency measurement
• Low Pass Filter for high frequency rejection
• Process parameter measurement facility

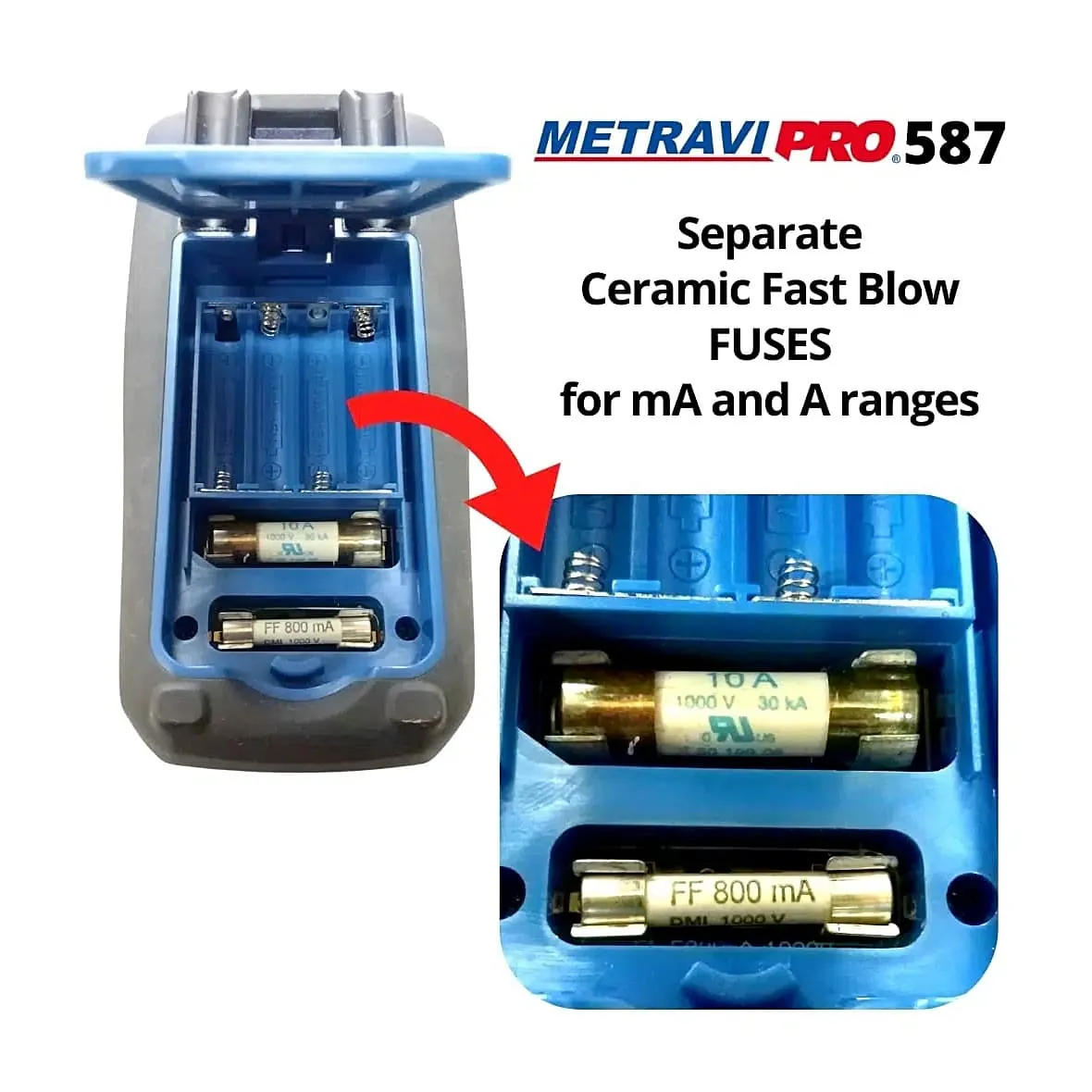

• Easy access Fast Blow Fuse for high safety
• TRMS
• Auto Data Hold
• Auto Power Off
• Auto Ranging
• Relative Measurement
• Min/Max Hold
• Bright Backlit LCD Display
• Counts: 6000 / 60000 Counts user selectable
• Analogue Bargraph
• DC Voltage: 600mV/6V/60V/600V/1000V
• Accuracy: ±(0.9% reading + 5digits
• AC Voltage: 600mV/6V/60V/600V/1000V
• Accuracy: ±(1.0% reading + 5digits)
• DC Current : 600uA/6000uA/60mA/600mA/10A
• Accuracy: ±(1.5% reading+ 5digits)
• AC Current : 600uA/6000uA/60mA/600mA/10A
• Accuracy: ±(2.5% reading+ 5digits)
• 4-20mA% : -25% to 125%Accuracy: ±20 digits
• Resistance : 600?/6k?/60k?/600k?/6M?/60M?
• Accuracy: ±(1.2% reading + 5digits)
• Capacitance: 60nF/600nF/6uF/60uF/600uF/6000uF
• Accuracy: ±(2.5% reading + 10digits)
• Frequency (Electronic) : 60Hz/6kHz/60kHz/600kHz/6MHz/10MHz
• Accuracy: ±(1.0% reading+ 2digits)
• Frequency (Electrical) : 40.00Hz-10KHz
• Accuracy: ±0.5% reading
• Duty Cycle: 0.1 to 99.90%
• Temperature: -50 to 760°C
• Accuracy: ±(2.0% reading + 3°C)
• ACV Bandwidth : 50Hz to 100KHz
• Measurement Rate : 3 times per second, nominal
• Fuses : mA, μA ranges; 0.8A/1000V ceramic fast blow A range; 10A/1000V ceramic fast blow
