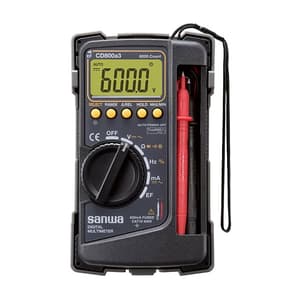

Sanwa 6000 Count TRMS Digital Multimeter with Tough Body Cover, CD800a3
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 340 g
- Display: 6000 Count
- Sampling Rate: 3 times/sec.
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,885 (Incl. of all taxes)
₹4,140 + ₹745 GST (18%)
MRP was MRP ₹4,600
Save 10%
7 Business Days
1
–
Download Product LeafletNot available
Download Sanwa CatalogueNot available
Download Sanwa CatalogueNot available
Highlights
- 6000 count
- True RMS
- 0.7 best accuracy (DCmV)
- Max/Min value hold
- Data hold, Range hold, Relative function
- EF (Electric Field) sensing
- Auto power off (30min.)(cancelable)

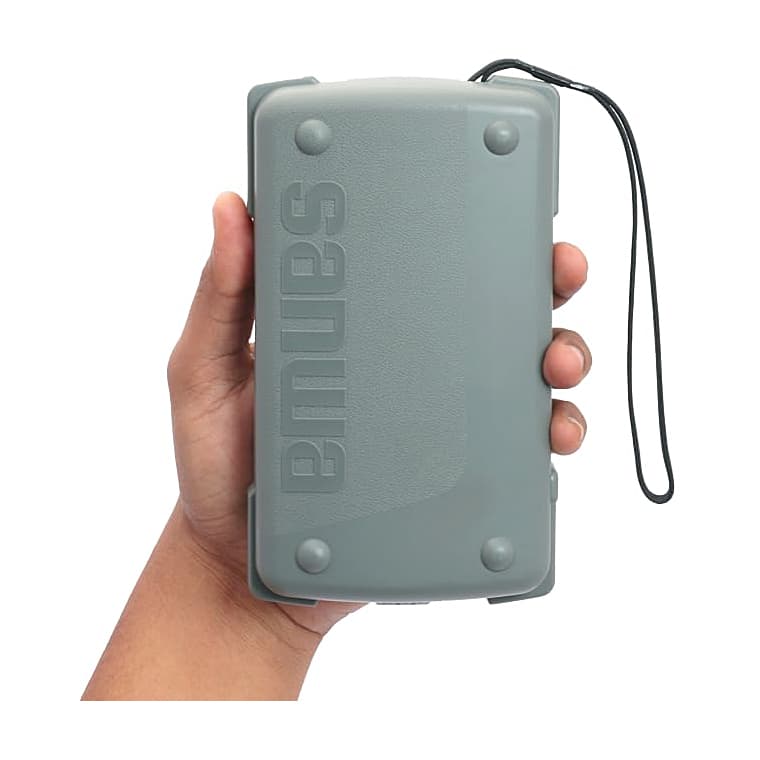

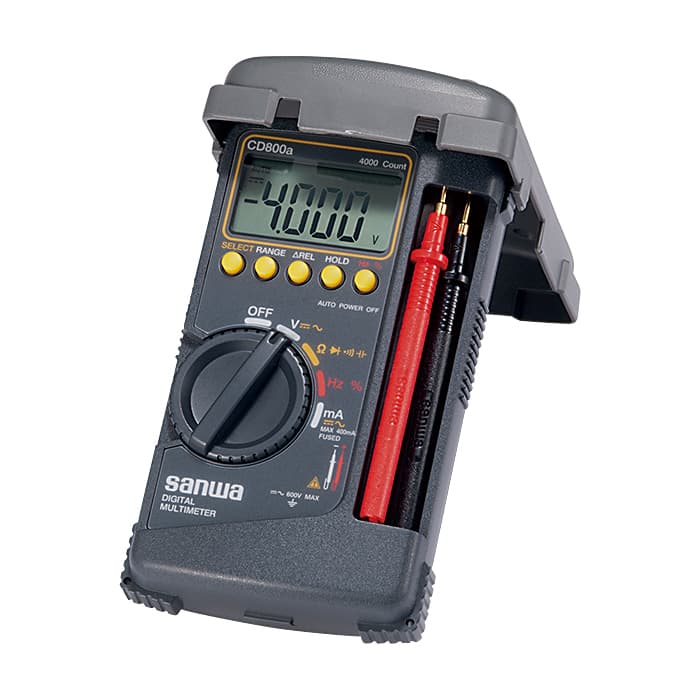

- Body cover for protection and as a tilt stand
- Back light
- Chip holder behind the body cover
Technical Data:
| Measuring range | Best accuracy | Resolution | Input impedance | |
|---|---|---|---|---|
| DCV | 600m / 6 / 60 / 600V | ±(0.7%+3) | 0.1mV | 10MΩ |
| ACV | 6 / 60 / 600V | ±(1.6%+5) | 0.001V | 10MΩ |
| DCA | 60m / 600mA | ±(2.2%+5) | 0.01mA | - |
| ACA | 60m / 600mA | ±(2.8%+5) | 0.01mA | |
| Resistance | 600 / 6k / 60k / 600k / 6M / 60MΩ | ±(1.2%+5) | 0.1Ω | |
| Capacitance | 60n / 600n / 6μ / 60μ / 600μ / 6mF | ±(5%+10) | 0.01nF | |
| Frequency | 9.999 / 99.99 / 999.9 / 9.999k / 99.99kHz | ±(0.5%+3) | 0.001Hz | |
| Duty cycle | 20%~80% | ±(0.5%+5) | 0.1% | |
| Continuity | Buzzer sounds at 39-60Ω or less. Open voltage: approx. 0.4V | |||
| EF detection | Detects ACV and EF of approx. 90V or more |
Functions:
 |
Continuity Buzzer The buzzer sounds when the measuring object is electrically conducting. |
 |
Low Power Ohm Resistance is measured by applying voltage of approximately 0.4V or less on a measuring object. It is characterized by the fact that the semiconductor does not conduct at approximately 0.4V or less even in forward direction. |
 |
Range Hold The range is fixed in the measurement of varying voltage and current which is difficult to read in the auto range. |
 |
Frequency Expressed in the unit of Hz (hertz). Commercial frequency of 50Hz/60Hz can be measured. |
 |
Capacitor Capacitor capacity (electrostatic capacity) is measured in F (farad), μF, etc. |
 |
Duty Cycle The duty cycle of repeating waveform is indicated on a percentage basis (%). It can be used for the analysis of control signals. |
 |
Data Hold A value indicated on the display is fixed even after the test lead is removed, and can be used as a record for reference purposes. |
 |
Relative Value A certain measured value is assumed as 0 and measured values after that are expressed by positive or negative values relative the value fixed as 0. |
 |
True RMS (True root-mean-square value) True RMS value. AC current and voltage of a non-sine wave can be measured by true RMS values. |
 |
EF function Non-contact AC voltage detection |
 |
MAX / MIN The maximum value and the minimum value are displayed or recorded. The recorded value can be seen later on the display. |
 |
Backlight Allows indicator reading in a dark place. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | 6000 Count |
|---|---|
| Sampling Rate | 3 times/sec. |
| Bandwidth | 40Hz - 400Hz |
| Fuse | 0.6A/600V 10kA Ø6.3×32mm Ceramic |
| Battery | 2x R6 |
| Battery Life | Approx.650h at DCV |
| Test Lead Length / Pin Tip | Approx. 0.77m (Length) / 19 mm |
| Diode Test | Approx.3V (Open Voltage) |
| Dimensions (H x W x D) | 176 × 104 × 46 mm |
| Safety Standards | IEC61010 CAT.IV 600V |
