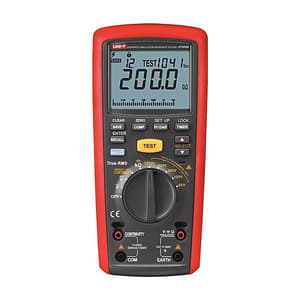

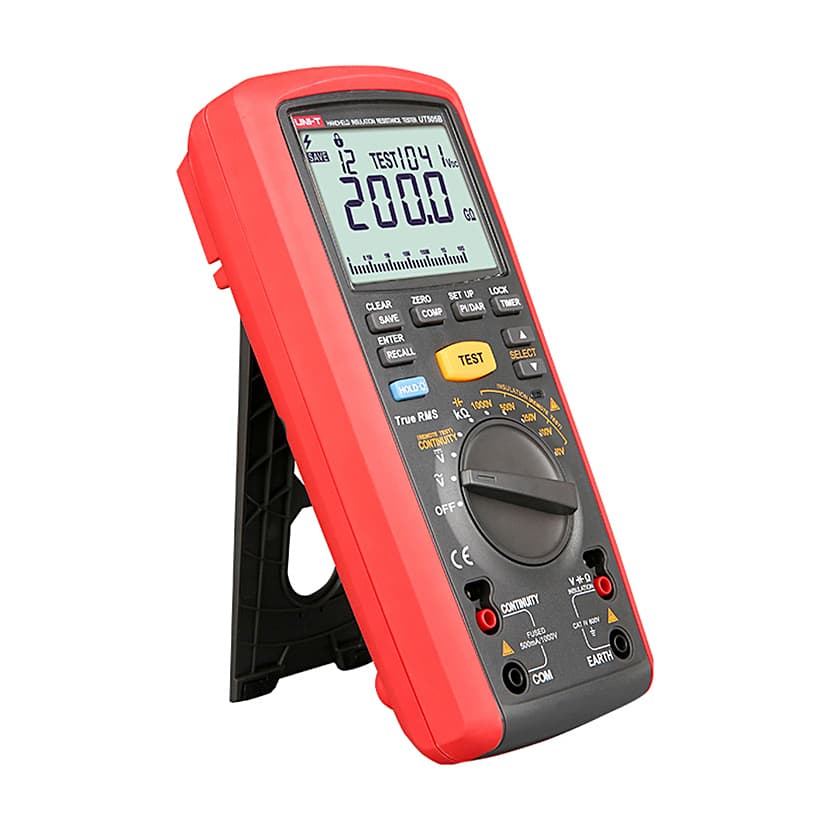

UNI-T 1000V / 200G Ohms Handheld Insulation Resistance Tester, UT505B
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 630 g
- Display Count: 6000
- Test Voltages: 1000V
- Insulation Resistance: 200G Ohm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹25,075 (Incl. of all taxes)
₹21,250 + ₹3,825 GST (18%)
MRP was MRP ₹25,000
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
UT505B handheld true RMS insulation resistance testers combine features of a digital multimeter and insulation resistance tester. Aside from the typical multimeter functions, these meters can also measure insulation resistance, PI, DAR, and automatically calculate resistance ratio to determine the insulation status.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Auto power off
- LCD backlight
- High voltage output alarm
- 99-group data storage
- Data hold
- Meets IEC 61557: 61557-1:2007; 61557-2:2007; 61557-4:2007
Technical Data:
| Range | Accuracy | ||
| Insulation resistance (Ω) | 50V | 50V / 100V / 250V / 500V / 1000V | 0%~20% |
| 0.01MΩ~50MΩ | ±(3%+3) | ||
| 50MΩ~1GΩ | ±(3%+3) | ||
| 100V | 1GΩ~10GΩ | ±(10%+3) | |
| 0.01MΩ~100MΩ | ±(3%+3) | ||
| 100MΩ~1GΩ | ±(3%+3) | ||
| 250V | 1GΩ~20GΩ | ±(10%+3) | |
| 0.01MΩ~200MΩ | ±(1.5%+5) | ||
| 200MΩ~1GΩ | ±(1.5%+5) | ||
| 500V | 1GΩ~50GΩ | ±(10%+3) | |
| 0.01MΩ~500MΩ | ±(1.5%+5) | ||
| 500MΩ~1GΩ | ±(1.5%+5) | ||
| 1000V | 1GΩ~100GΩ | ±(10%+3) | |
| 0.1MΩ~2000MΩ | ±(1.5%+5) | ||
| 2GΩ~9.9GΩ | ±(5%+3) | ||
| 10GΩ~20GΩ | ±(7%+3) | ||
| 20GΩ~200GΩ | ±(20%+3) | ||
| Load current | 50V (R=50kΩ) 1mA | 0%~10% | |
| 100V (R=100kΩ) 1mA | 0%~10% | ||
| 250V (R=250kΩ) 1mA | 0%~10% | ||
| 500V (R=500kΩ) 1mA | 0%~10% | ||
| 1000V (R=1MΩ) 1mA | 0%~10% | ||
| Short circuit current | <2mA | ||
| Leakage current (A) | 10~2000μA | ±(10%+3) | |
| Low resistance (Ω) | 0.01Ω~100Ω (about 5V/>200mA / 20mA optional) | ±(1.5%+3) | |
| General resistance (Ω) | 0.01kΩ~10MΩ | ±(3%+3) | |
| DC voltage (V) | 0V~600V | ±(2%+3) | |
| AC voltage (V) | 0V~600V | ±(1.5%+5) | |
| Frequency (Hz) | 45~1kHz | ±(0.1%+3) | |
| Capacitance (F) | 100pF~500μF | ±(5%+5) |
Package Content:
- 1x Handheld Insulation Resistance Tester
- 6x 1.5V batteries (LR6)
- Test leads
- Test probes
- Alligator clips
- Remote test lead
- Carrying bag
- Gift box
- English manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Count | 6000 |
|---|---|
| Test Voltages | 1000V |
| Insulation Resistance | 200G Ohm |
| DAR | 60s/15s & 60s/30s |
| Short-circuit Current | < 2mA |
| AC/DC Voltage | 0V - 600V |
| Meets IEC 61557 | 61557-1:2007; 61557-2:2007; 61557-4:2007 |
| Step Voltage | 10% Steps at 50% ~ 120% of range |
| Power Supply | 6x 1.5V Battery (LR6) |
| Display Size | 78 x 59 mm |
| Product Color | Red & Grey |
| Dimensions (mm) | 103 x 225 x 59 mm |
