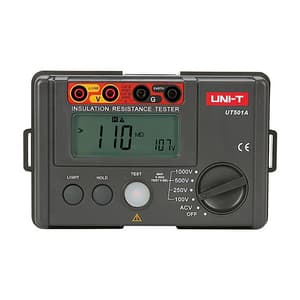

UNI-T 1000V / 5G Ohms Digital Insulation Resistance Tester, UT501A
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 500 g
- Display Count: 2000
- Test Voltages: 1000V
- Insulation Resistance: 5G Ohm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,817 (Incl. of all taxes)
₹4,930 + ₹887 GST (18%)
MRP was MRP ₹5,800
Save 15%
3 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
UT501A insulation testers are used to measure the insulation resistance of electrical equipment and household appliances. This is done by measuring the insulation resistance between electrical circuits or between circuits and ground. UT501A can measure insulation resistance, AC Voltage, PI (Polarization Index) and DAR (Dielectric Absorption). These are dieal tools for ensuring transformers, genera-tors, high voltage motors, capacitors, cables, arresters and other electrical equipment that can oprate in a safe and accurate manner.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- 2000 count LCD display, overload indication, backlight
- AC voltage measurement, auto power off
- Auto discharge
- Continuous low resistance measurement
- Continuous measurements mode, red warning light and buzzer function
- PI and DAR measurement, auto resistivity calculation
- Low resistance returning to zero function to improve accuracy
Technical Data:
| Specifications | Range | Accuracy | |
| Insulation resistance (Ω) | Test voltages | 100V/250V/500V/1000V | 0%~10% |
| 100V | 0MΩ~100MΩ | ±(3%+5) | |
| 250V | 0MΩ~99.9MΩ | ±(3%+5) | |
| 100MΩ~5GΩ | ±(5%+5) | ||
| 500V | 0MΩ~99.9MΩ | ±(3%+5) | |
| 100MΩ~5GΩ | ±(5%+5) | ||
| 1000V | 0MΩ~99.9MΩ | ±(3%+5) | |
| 100MΩ~5GΩ | ±(5%+5) | ||
| Load current | 50V (R=50kΩ) 1mA | 0%~10% | |
| 100V (R=100kΩ) 1mA | 0%~10% | ||
| 250V (R=250kΩ) 1mA | 0%~10% | ||
| 500V (R=500kΩ) 1mA | 0%~10% | ||
| 1000V (R=1MΩ) 1mA | 0%~10% | ||
| Short-circuit current | <2mA | ||
| AC voltage (V) | 30V~750V | ±(2%+3) |

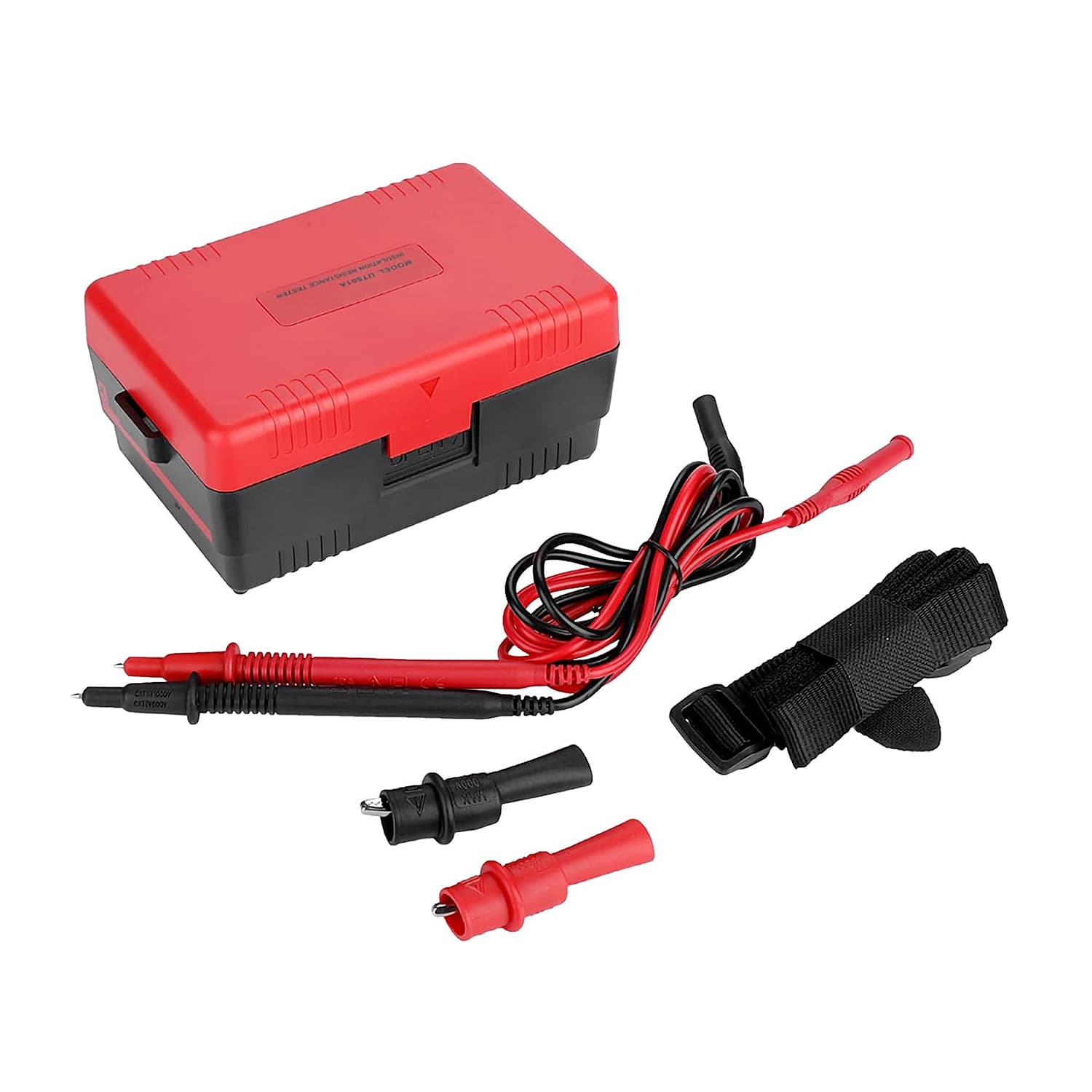

Package Content:
- 1x Insulation Resistance Tester
- 6x 1.5V batteries (LR6)
- Test leads
- Alligator clips
- Gallus

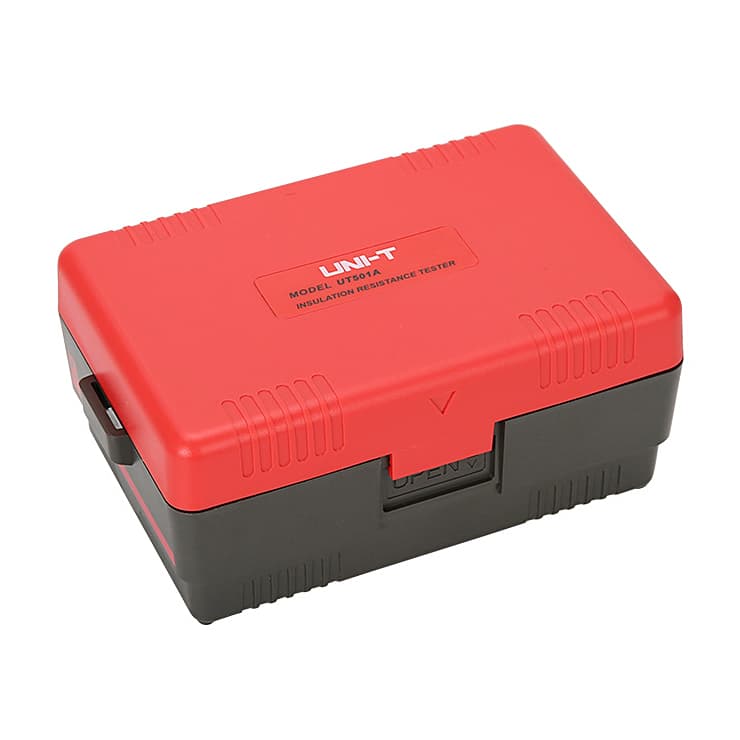

- Gift box
- Carrying bag
- English manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Count | 2000 |
|---|---|
| Test Voltages | 1000V |
| Insulation Resistance | 5G Ohm |
| Short-circuit Current | < 2mA |
| AC Voltage | 30V - 750V |
| Meets IEC 61557 | 61557-1:2007; 61557-2:2007 |
| Power Supply | 6x 1.5V Battery (LR6) |
| Display Size | 70.6 x 34 mm |
| Product Color | Red & Grey |
| Dimensions (mm) | 150 x 100 x 71 mm |
