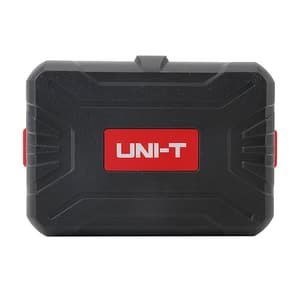

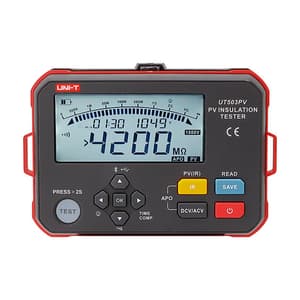

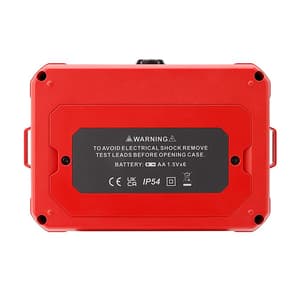

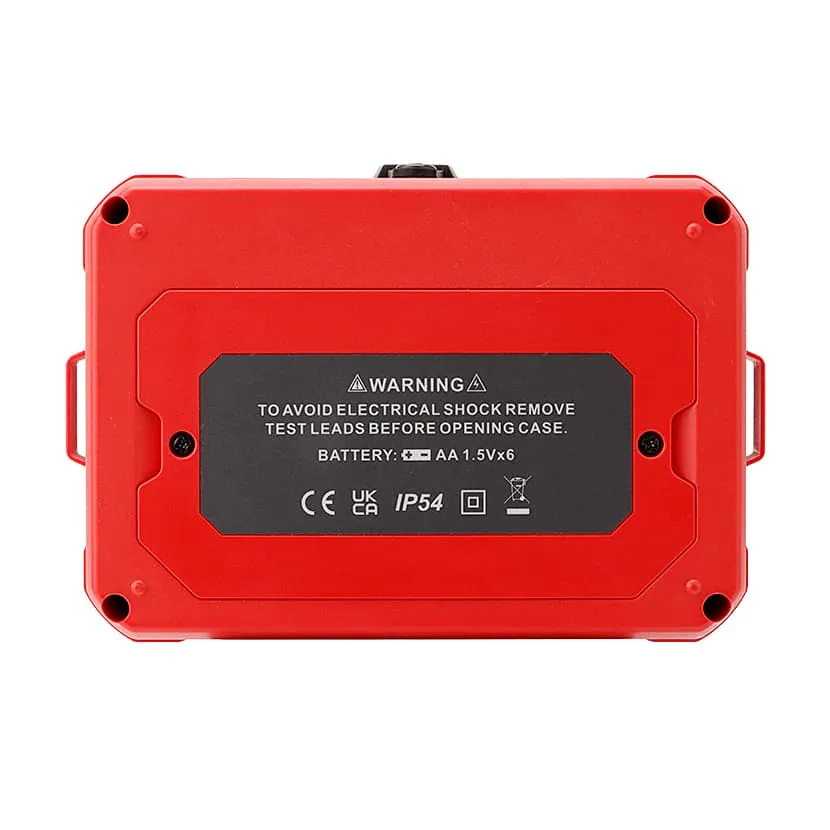

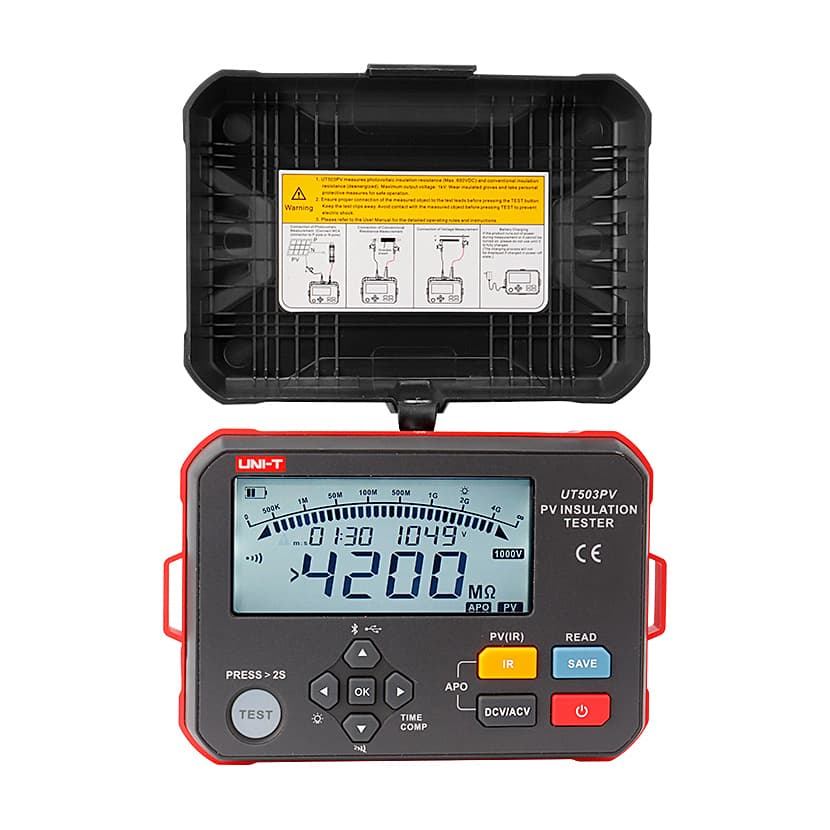

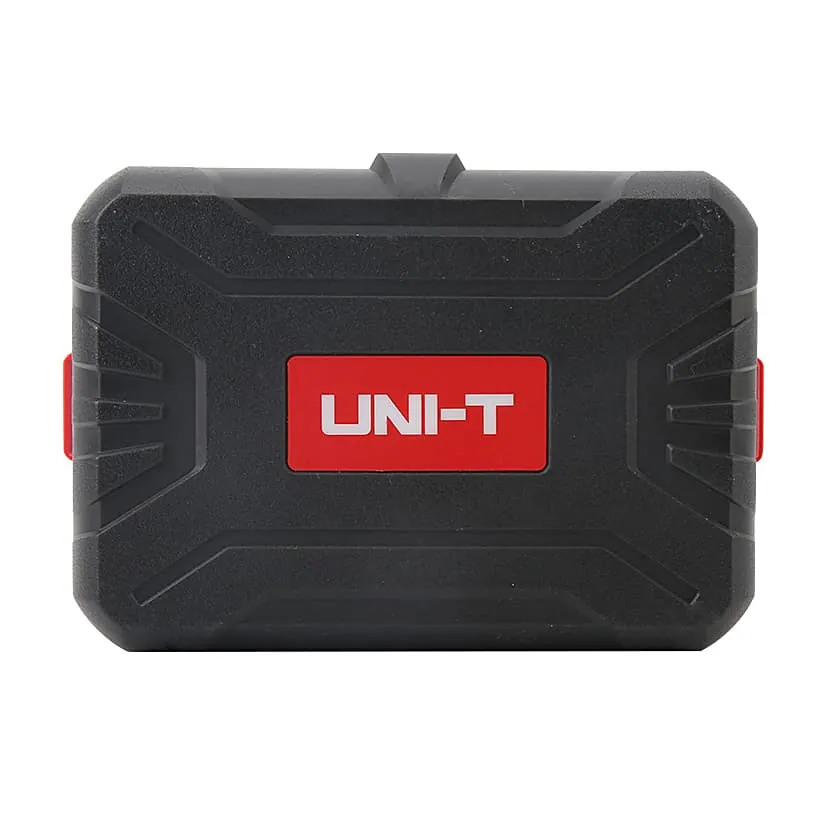

UNI-T 1000V DC High Voltage Digital PV Insulation Tester, UT503PV
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 0.5 kg
- High Output Voltage: 1000V DC
- Energized Device Test: 1000V DC
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹29,087 (Incl. of all taxes)
₹24,650 + ₹4,437 GST (18%)
MRP was MRP ₹29,000
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
UT503PV PV insulation resistance tester has the function of measuring photovoltaic live insulation resistance, ordinary insulation resistance function (non-live), AC and DC voltage automatic recognition measurement and so on
Features:
- Time measurement
- Compare function (IR)
- High voltage alarm
- Data communication: USB cable + Bluetooth app
- Portable & Convenient
- Auto discharge
- Stepping voltage
- Auto & Manual backlight (Auto power off in 30s)
- Data Communication: Transmission via USB cable / Transmission via Bluetooth app
- Energized device test: DO NOT test if the energized device voltage is above 25V (IR measurement) / The energized device voltage should be under DC 1000V (PV IR measurement)
Technical Data:
| Output voltage | Insulation resistance | PV insulation resistance | Accuracy |
| 125V | <1.51MΩ | N/A | For reference only |
| 1.51MΩ~100.0MΩ | ±(1.5%+5) | ||
| 100.1MΩ~1000MΩ | ±(5%+6) | ||
| 250V | <1.51MΩ | N/A | For reference only |
| 1.51MΩ~200.0MΩ | ±(1.5%+5) | ||
| 200.1MΩ~2000MΩ | ±(5%+6) | ||
| 500V | <1.51MΩ | <1.51MΩ | For reference only |
| 1.51MΩ~1000MΩ | 1.51MΩ~1000MΩ | ±(1.5%+5) | |
| 1001MΩ~4000MΩ | 1001MΩ~4000MΩ | ±(5%+6) | |
| 1000V | <1.51MΩ | <1.51MΩ | For reference only |
| 1.51MΩ~1000MΩ | 1.51MΩ~1000MΩ | ±(1.5%+5) | |
| 1001MΩ~4000MΩ | 1001MΩ~4000MΩ | ±(5%+6) | |
| Voltage measurement | DC Voltage | 5~1000V dc | ±(1%+4) |
| AC Voltage | 5~600V ac | ±(1%+4) | |
| Short circuit current | IR measurement | <1.5mA | - |
| PV IR measurement | <1.2mA | - | |
| Continue measurement (IR) | √(default setting) | Compare function(IR) | √ |
| Time measurement | √ | Stepping voltage | √ |
| Auto discharge | √ | High voltage alarm | √ |
Package Content:
- 1x Digital PV Insulation Tester
- 1x Manual
- 2x Test lead lines (1 black test line, 1 remote control test lead line)
- 1x Lantern plug
- 1 Pair x Red/black alligator clip
- 1 Pair x Banana plug to MC4 plug test line
- 1x Type-C Cable
- 1x Strap
- 6x LR6 AA Alkaline Batteries
- Charging stand (Optional, model: UT-W13)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| High Output Voltage | 1000V DC |
|---|---|
| Energized Device Test | 1000V DC |
| Insulation Resistance (PV+IR) | 4000M Ohm |
| Voltage Measurement | 1000V DC & 600V AC |
| Data Storage | 1000 Set |
| IP Rating | IP54 (With cap closed) |
| CAT Rating | CAT II 1000V, CAT III 600V |
| Certificates | CE, UKCA |
| Product Color | Red + Grey |
| Dimensions (LxDxH) | 161 × 117.3 × 63 mm |
