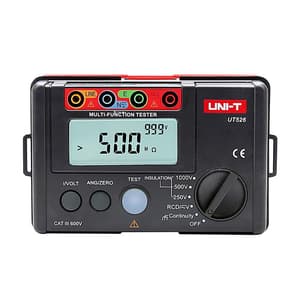

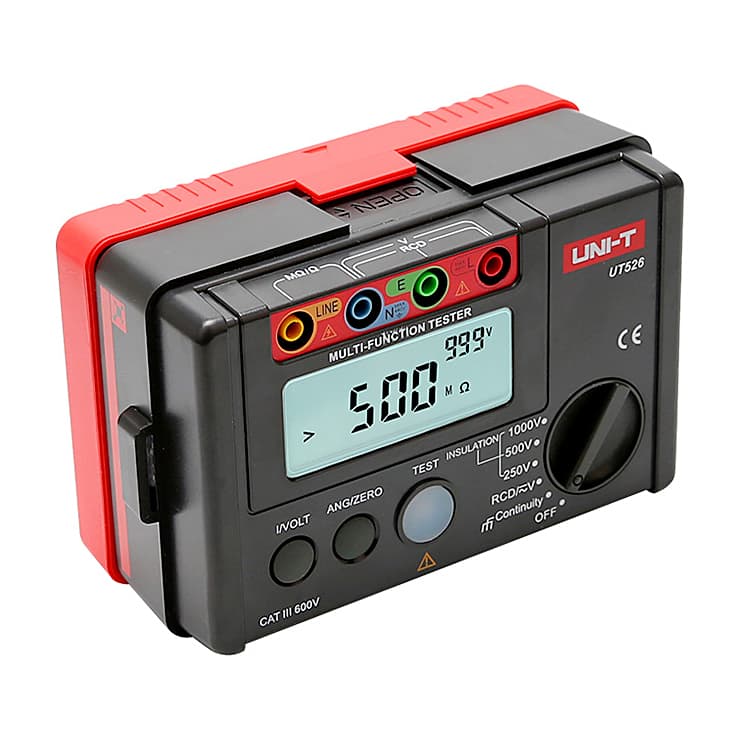

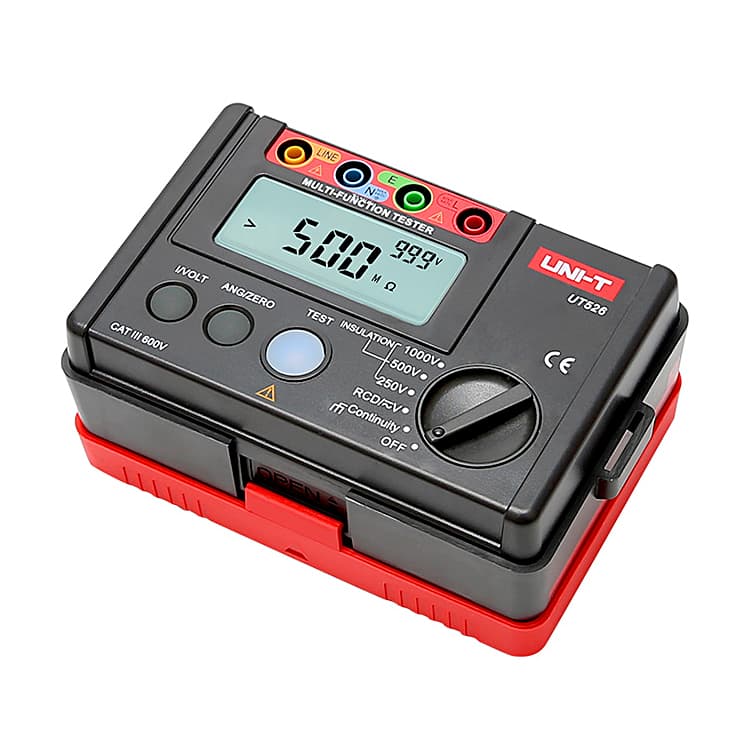

UNI-T 1000V / 500M Ohms Multifunction Electrical Meter, UT526
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 380 g
- Display Count: 10000
- Test Voltages: 1000V
- Insulation Resistance: 500M Ohm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹17,151 (Incl. of all taxes)
₹14,535 + ₹2,616 GST (18%)
MRP was MRP ₹17,100
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
UT526 is a multifunctional electrical installation tester. It can be used to test insulation resistance, RCD status, low resistance continuity, and voltage measurements. UT526 can be used to test power distribution system, lightning protection system and wiring systems to ensure safe operations.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Manual range
- Phase switch (RCD): 0°and 180°
- Low battery indication
- Auto AC/DC voltage identification
- Red warning lights
Technical Data:
| Specifications | Range | UT526 | |
| Insulation resistance (Ω) | Test voltages | 250V / 500V / 1000V | ±10% |
| 250V | 0.05MΩ~200MΩ | ±(5%+5) | |
| 500V | 0.05MΩ~300MΩ | ±(5%+5) | |
| 1000V | 0.05MΩ~500MΩ | ±(5%+5) | |
| Load current | 250V (R=250kΩ) 1mA | ±10% | |
| 500V (R=500kΩ) 1mA | ±10% | ||
| 1000V (R=1MΩ) 1mA | ±10% | ||
| Short circuit current | <2mA | √ | |
| RCD | Operating voltage (Freq.) | 220V (45Hz~65Hz) | ±10% |
| Test current | 10mA / 30mA / 100mA / 300mA | 0~20% | |
| Trip time | 0ms~2000ms, 1Δn general (10mA) | ±(5%+2) | |
| 0ms~500ms, 1Δn general | |||
| 0ms~300ms, 1Δn general (100mA, 300mA) | |||
| Low resistance continuity | Range | 0Ω~2000Ω | ±(2%+5) |
| Test voltage | Around 5V | √ | |
| Test current | >200mA (R<2Ω) | √ | |
| Voltage measurement (V) | DC voltage | 0~440V | ±(5%+2) |
| AC voltage | 0~440V | ||
| Frequency (For reference only) | √ |
Package Content:
- 1x Multifunction Electrical Meter
- 6x 1.5V batteries (LR6)
- Carrying bag
- Gallus
- Test leads
- Alligator clips
- Test line
- Gift box,
- English manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Count | 10000 |
|---|---|
| Test Voltages | 1000V |
| Insulation Resistance | 500M Ohm |
| Short-circuit Current | < 2mA |
| AC/DC Voltage | 0 - 440V |
| Power Supply | 6x 1.5V Battery (LR6) |
| Display Size | 71 x 34 mm |
| Product Color | Red & Grey |
| Dimensions (mm) | 160 x 100 x 71 mm |
