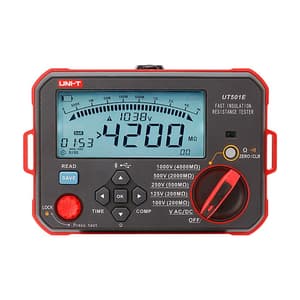

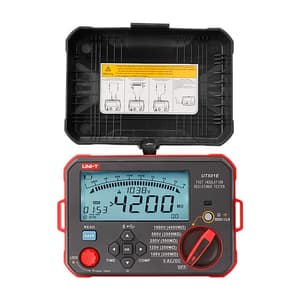

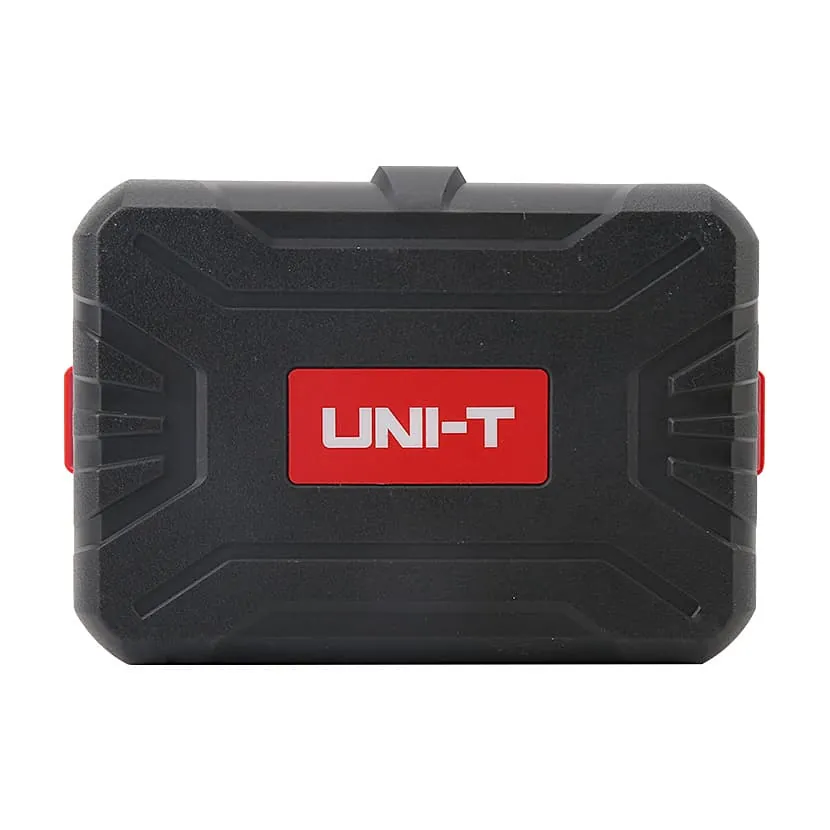

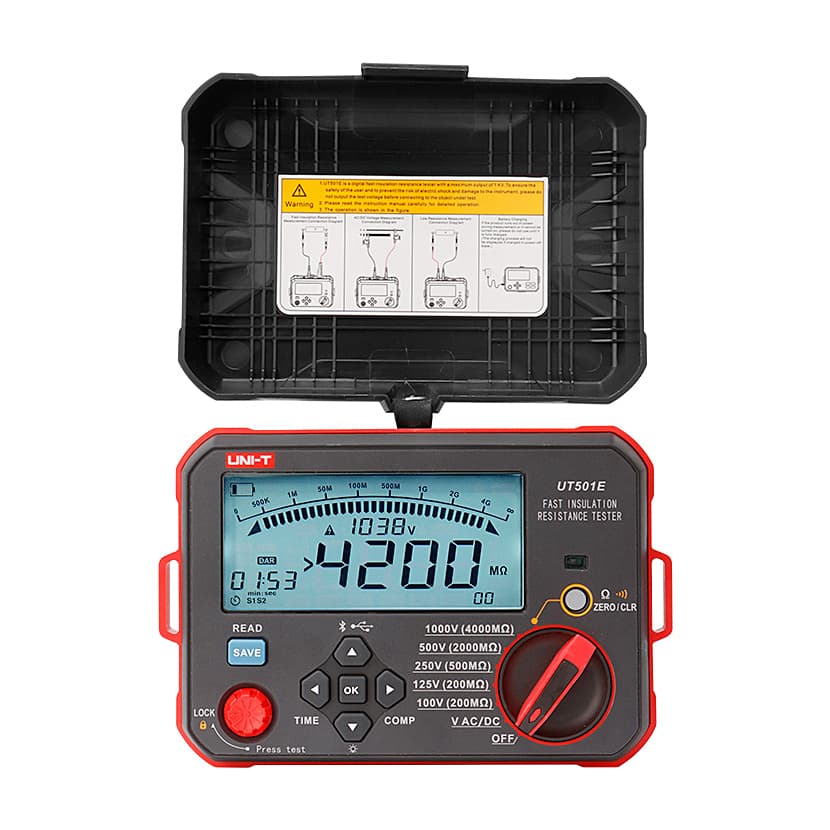

UNI-T 1000V / 4G Ohms Fast Insulation Resistance Tester, UT501E
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Output Voltage: 100V, 125V, 250V, 500V, 1000V
- Insulation Resistance: 0 ~ 4G Ohm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹19,157 (Incl. of all taxes)
₹16,235 + ₹2,922 GST (18%)
MRP was MRP ₹19,100
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
UT501E can verify the quality of the electrical equipment produced, confirm the change of the insulation of the electrical equipment over time, troubleshoot and determine the cause of the fault. It features 2.5 times fast measurement, comparison test function and alarm function, and the “safety lock function” prevent false and effectively improve the work efficiency of electrical engineers. It is a convenient and practical tool.
Features:
- 2.5 times faster measurement
- Comparison test function
- PI & DAR function
- Auto discharge
- Alarm function (Audible & Visible alarm)
- PC software analysis (via USB cable)
- Remote control test lead
- Lock function: to prevent false triggering
- High voltage alarm
- Manual range (insulation)
- Auto range (voltage)
- Overrange display, Security lock, Analog strip
- Backlight, Auto power off, Low battery indication
Technical Data:
| Range | Accuracy | ||
| Insulation resistance (0~4GΩ) | 100V | 0.10~20.0M | ±(2%+6) |
| 20.1~200M | ±(5%+6) | ||
| 125V | 0.10~20.0M | ±(2%+6) | |
| 20.1~200M | ±(5%+6) | ||
| 250V | 0.20~40.0M | ±(2%+6) | |
| 40.1~500M | ±(5%+6) | ||
| 500V | 0.5~200M | ±(2%+6) | |
| 201~2000M | ±(5%+6) | ||
| 1000V | 1.00~1000M | ±(2%+6) | |
| 1001~4000M | ±(5%+6) | ||
| Low resistance measurement | 0.00Ω~400Ω | ±(2%+8) | |
| AC voltage | 30V~600V; 50Hz / 60Hz | ±(2%+3) | |
| DC voltage | 30V~600V | ±(2%+3) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Output Voltage | 100V, 125V, 250V, 500V, 1000V |
|---|---|
| Insulation Resistance | 0 ~ 4G Ohm |
| Data Storage | 99 Groups |
| IP Rating | IP54 |
| Category Rating | CAT III 600V |
| Rated Current | 1.0 mA |
| Short Circuit Current | < 2.0mA |

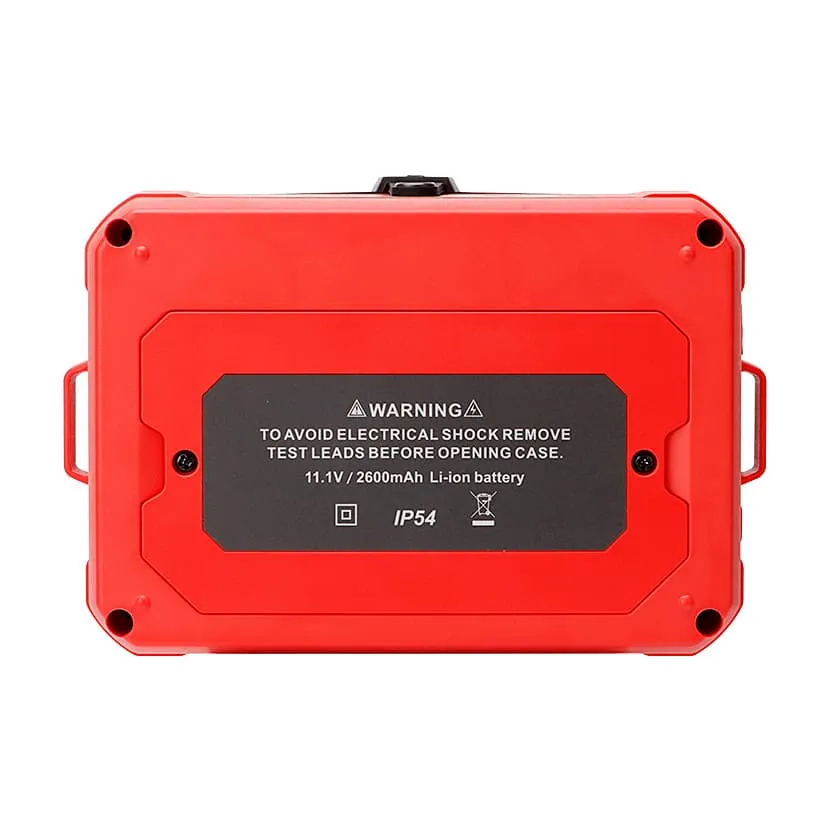

| Power Supply | 12V, 2600mAh Rechargeable Lithium Battery |
| Product Color | Black + Red |
| Dimensions (mm) | 161 x 116 x 68 mm |
