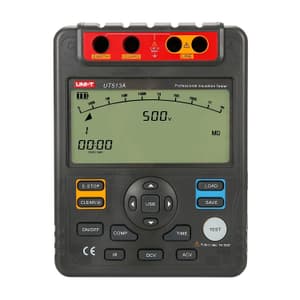

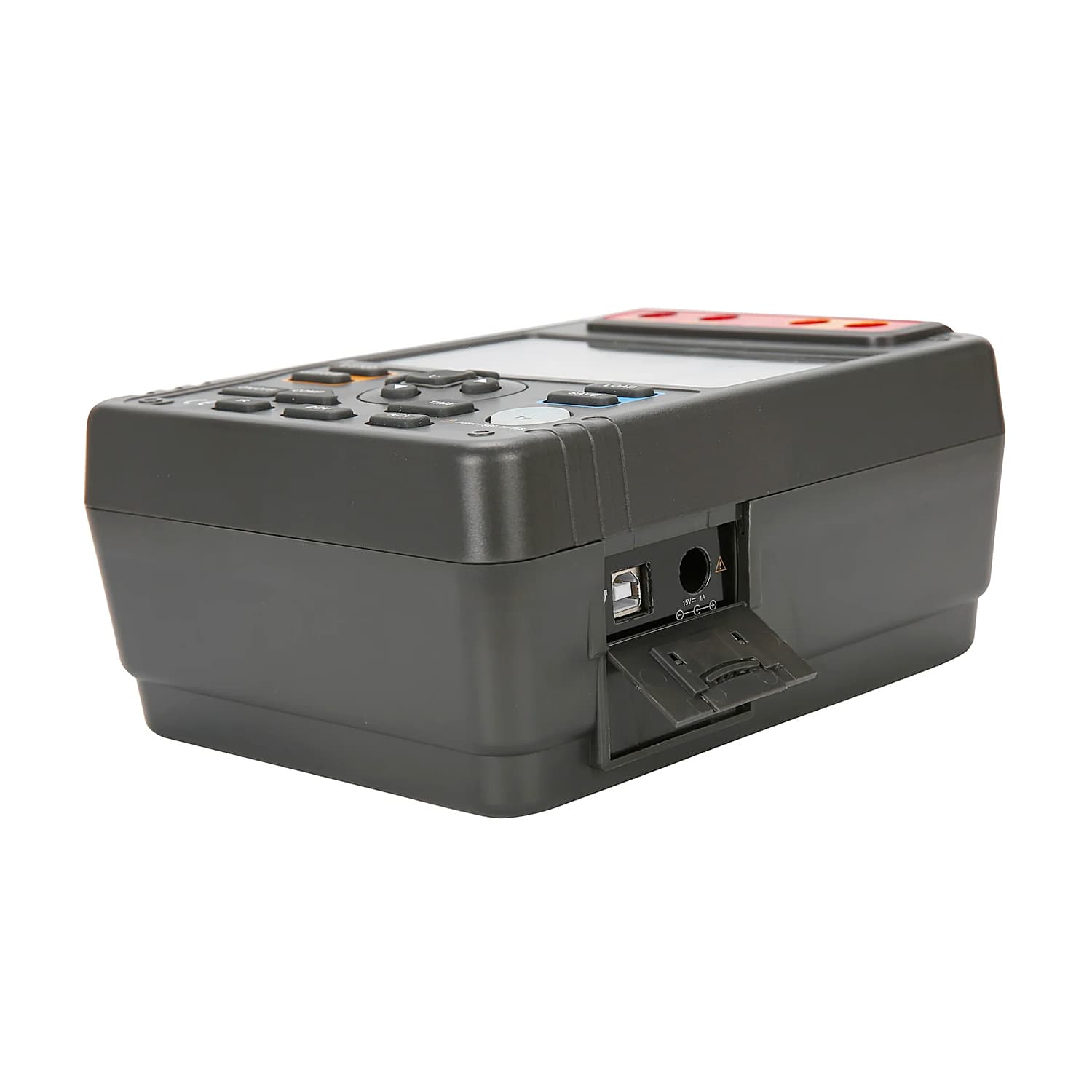

UNI-T 5000V / 1000G Ohms Insulation Resistance Tester, UT513A
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 2 kg
- Test Voltage: 500V ~ 5000V
- Insulation Resistance: 0.5M - 1000G Ohm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹30,341 (Incl. of all taxes)
₹25,713 + ₹4,628 GST (18%)
MRP was MRP ₹30,250
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
UT513A Insulation Resistance testers can measure insulation resistance of large transformers, generators, high-voltage motors and more. UT513A can also measure PI, DAR and other important specifications. Measured data can then be analyzed through PC software. UT513A can produce test voltage up to 5kV.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Large 9999 display with 30-segment analog bar graph
- Polarization index (PI) / Dielectric absorption ratio (DAR) measurements
- Comparison, upper and lower limit functions
- Continuous measurement mode
- Auto power off
- 18-group data storage
- Backlight
- Auto current discharge and high-voltage output alarm
- Time measurement mode, auto measure within 15 minutes
- Low battery and over range indications
- Auto range/Auto power off
- Test voltage secondary display
- Low battery indication
- USB interface / LCD backlight
- Over-range warning / High voltage indication
Technical Data:
| Range | Accuracy | ||
| Insulation resistance (Ω) | Test voltages | 500V ~ 5000V | 0%~20% |
| 500V | 0.5MΩ ~ 20GΩ | ±(3%+5) | |
| 1000V | 1MΩ ~ 40GΩ | ||
| 2500V | 2.5MΩ ~ 100GΩ | ||
| 5000V | 5MΩ ~ 1000GΩ | ||
| AC / DC voltage (V) | 600V | ±(2%+3) |
Package Content:
- 1x Insulation Resistance Tester
- 8x 1.5V batteries (LR14)
- 2x One plug test lead to one alligator clip (black & Green)
- 1x Two plugs test lead to one alligator clip (Red)
- USB cable
- PC software CD
- Power adaptor
- Gift box
- Toolbox
- English manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Test Voltage | 500V ~ 5000V |
|---|---|
| Insulation Resistance | 0.5M - 1000G Ohm |
| AC/DC Voltage | 600V |
| Short-circuit Current | >3mA |
| Data Storage | 18 |
| Analog Bar Graph | 30 |
| Timing Measurement | Around 15 Minutes |
| Meets IEC 61557 | UT513A: 61557-1:2007; 61557-2:2007 |
| Power Supply | 8x 1.5V Battery (LR14) |
| Display | 123 x 58 mm |
| Product Color | Red & grey |
| Dimensions (mm) | 202 x 155 x 94 mm |
